| Model NO. | MAN 9 L21/31 Series diesel engine generator | After-sales Service | Korean DOOSAN engineers will complete the installation and adjustment work. |
| Warranty | 5-9 Year | Type | Basic Diesel Generator |
| Installation Method | NEW ( full set ) | Stroke | 9 Stroke engine |
| Cooling Method | Water Cooling | Output Type | AC Three Phase |
| Conditions of Use | Marine | Usage | Common Units, Standby Unit |
| Landuse Type of Unit | Ordinary | Excitation Mode | AC Rotating Exciter |
| Trademark | MAN | Transport Package | 20gp x2 |
| Specification | 1230023502550 | Origin | KOREA |
| HS Code | 8503009090 |

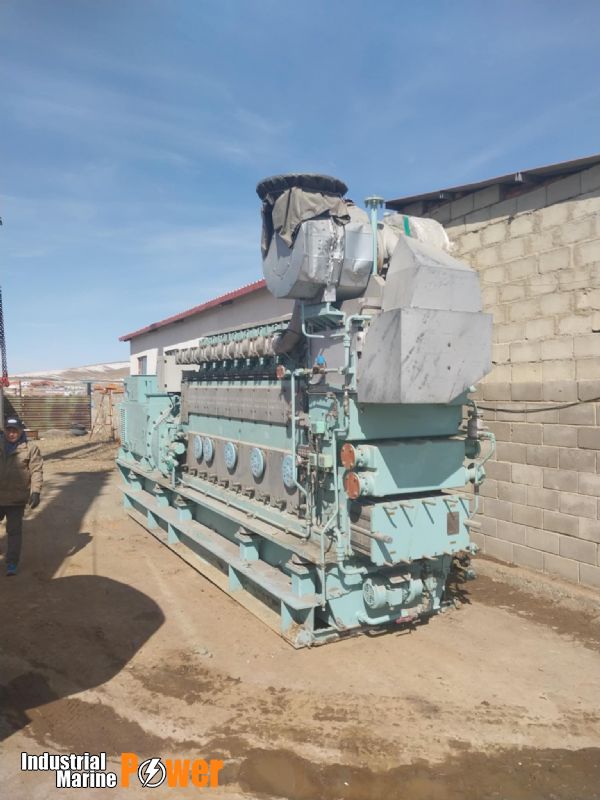

The MAN L21/31 engine is a compact and reliable power source designed to run on heavy fuel oil (HFO). With its outstanding load pick up capabilities and extremely long time between overhauls (TBO), the MAN L21/31 Mk2 is ideal for many different applications
Benefits at a glance
- Long time between overhauls - No unscheduled maintenance and repair work
- Low fuel and lube oil consumption while fulfilling legal emission limits - Short installation length
| Diesel engine model | MAN 9L21/31 |
| number of cylinders | 9 |
| Diameter of cylinders | 210mm |
| Travel length of piston | 310mm |
| Rotate speed | 1000rpm |
| Diesel engine power | 1980kw |
| Generator set power | 1881kw |
| Generator set type | HYOSEUNG SS1881 |
| Hz | 50hz |
| Voltage | 6.6kv |
| POWER FACTOR (lag ) | 0.8 |
| manufacturer | DOOSAN- MAN impower/ Korea |
| Manufacture date | 2012 |

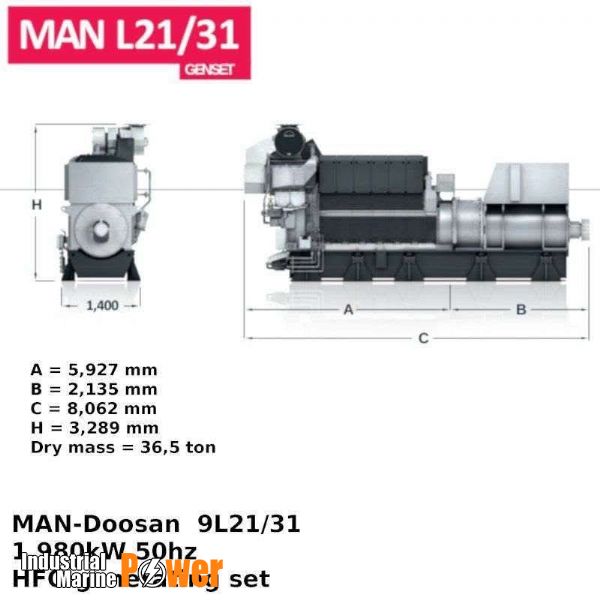

| Dimensions | 806232891750mm |
| Weight (dry weight) | 36500kg |
