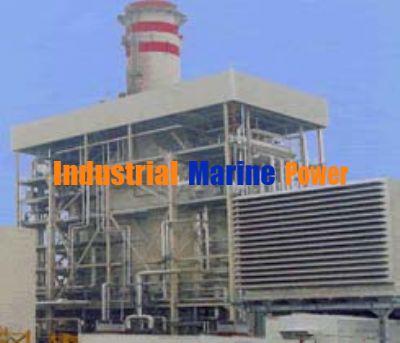

MS6001B Gas Turbine Generating Set

MS6001B Gas Turbine Generating Set is a kind of packaged unit with a common base and four major compartments: control, gas turbine, load gearbox and generator compartments. It can be arranged outdoor or indoor. The gas turbine control panel, generator control panel and protection panel, motor control center are arranged in the control compartment. Cabinets of generator neutral point and outgoing-line are set at both sides of generator. The unit has an enclosure with necessary ventilation, lighting and fire-fighting system. Air conditioning is set for control compartment.

1.MS6001B Gas Turbine MS6001B gas turbine consists mainly of air inlet system, compressor, combustor, turbine, exhaust system, accessory system and control system, etc.

Air enters compressor through the inlet air filters and silencers. The compressed air then, gets into combustors and mixed with fuel, which is ejected by fuel nozzles in the combustors. The fuel and compressed air are burnt to produce high-pressure and high-temperature gas, and then the gas expands in turbine to generate power. After expansion, it exhausts to atmosphere through exhaust system (or to HRSG).
