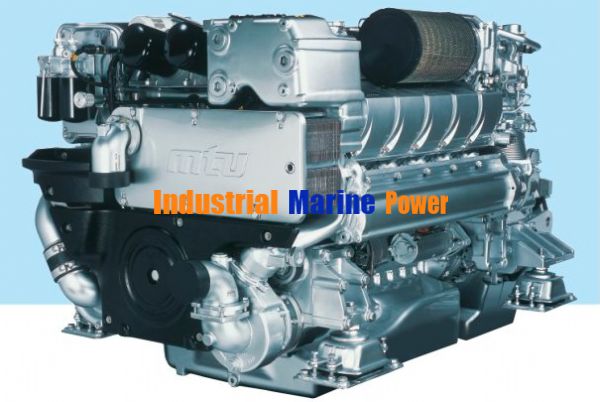

MTU 16V2000M84 - 16 Units
|
Engine Technical Specification |
|
|
Make |
MTU |
|
Model |
16V2000M84 |
|
Power |
1630 kW @ 2450 rpm (ISO 3046) |
|
Certification |
Llyod’s Register |
|
Type |
Liquid Cooled , 4 Stroke Diesel Engine |
|
No of cylinders |
16 ( V Angle) |
|
Bore, Stroke |
135, 156 |
|
Displacement |
35.68 L |
|
Exhaust Rating |
IMO Tier 2 |
|
Automation |
|
|
|
Blue Vision Propulsion Plant Automation |
|
|
With 1 Control/Monitoring Stand for Engine Control Room & 2 Control/Monitoring Stand for Wheelhouse. LR Classified. |
|
Performance / Fuel Consumption |
|
|
Fuel Efficiency |
214 g/kWh , 1630kW @ 2450 rpm |
|
(+5% tolerance as per DIN /ISO 3046) (Actual Data from Bench FAT available at request) |
|
Engine Standard Equipment
|
Starting |
24 V DC, Battery Start |
|
Aux PTO |
Charging Generator(80A, 28VDC, 2 Pole) |
|
Cooling |
Electric Coolant Unit with circulation pump |
|
Oil System |
Gear Driven Lube oil Pump with safety valve |
|
Lube-oil multi-stage filter with diverter valve, |
|
|
LO Heat Exchanger |
|
|
Auto-Oil Level monitoring sensors |
|
|
Hand Pump |
|
|
Fuel System |
Low pressure fuel system complete with Fuel feed pump, valves, heat exchanger. |
|
High Pressure Fuel system complete with CRDI high pressure pump, pressure accumulator, electronic fuel injection |
|
|
Fuel duplex prefilter |
|
|
water separator with tell-tale tank |
|
|
Fuel Treatment Plant KFWA 2 |
|
|
Cooling system |
MTU Split circuit cooling system |
|
Coolant Pump & filter |
|
|
Plate core Heat Exchanger cooling |
|
|
Exhaust System |
Liquid Cooled, On Engine exhuast manifolds |
|
MTU sequential turbocharging with 3 exhaust gas turbo chargers |
|
|
Water cooled Y exhaust pipe |
|
|
Heat Insulated expansion tube for horizontal exhaust connection |
|
|
Mounting |
Resilient Engine Mounting |
|
Coupling |
Vulkan Resilient coupling |
|
Engine Control & Monitoring System |
Engine Control Unit (ECU), engine mounted |
|
Engine Monitoring Unit (EMU), engine mounted |
|
|
Complete with necessary speed transmitters, temperature transmitters and pressure transmitters |
|
Gearbox Technical Specification |
|
|
Make |
ZF |
|
Model |
4540A |
|
Ratio |
3.04:1 |
|
Certification |
Llyod’s Register |
|
Duty |
Light |
Gearbox Equipment
|
Standard Equipment |
Light Metal Housing, Output Flange, Oil to Raw water heat exchanger, Oil filter, Oil Pumps, Hydraulically operated clutch, Electric Control with Manual Emergency Control. |
|
Additional Equipments |
Gearbox Controls for Electric Remote Control |
Basic Dimensions and Weight
|
Dry Weight of Engine Approx, Kg |
3337 (with Engine Mounted Accessories) |
|
Engine+Coupling+Gearbox , Approx, Kg |
4680 |
