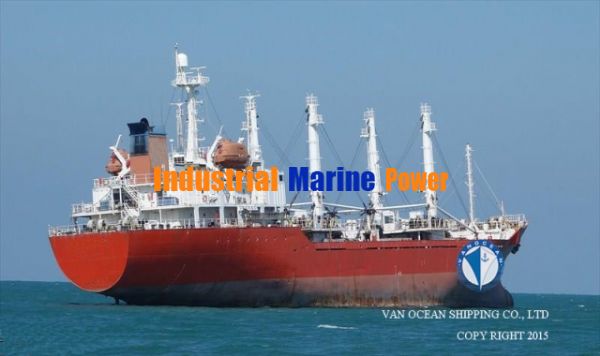

REF366/REEFER/1989-1/5580CBM/ USD 4.80 MILLION

NAME

REF366

TYPE

DEEP FREEZER/SASHIMI CARRIER

FLAG

PANAMA

PORT OF REGISTRY

PANAMA

BUILT YEAR

1989-1

BUILT PLACE

FUKUOKA SHIPBUILDING Co, JAPAN

CLASS

NK MNS RMC (CLASS SEEMS WITHDRAWN ON 2013-04 WHEN SURVEY ON 2015-01 OR 2013-11)

SS

2015-08

DD

2015-08

LOA

117.40M

LBP

107.0M

BEAM

16.42M

DEPTH

9.95M

DRAFT

SUMMER: 7.114 M

GT

INTERNATIONAL: 4579 MT

PANAMA: 5090MT

SUEZ: 4767MT

NT

INTERNATIONAL: 2156MT

PANAMA: 3593 MT

SUEZ: 3767 MT

DWT

5053MT

LDT

2828MT

FLOOR SPACE CAPACITY

2184SQM

GEAR

DERRICKS 8×5MT / UP 4×3MT, 6M OUTREACH

ME

MITSUBISHI 8UEC37LA 5600 BHP×210 RPM MAX, 5040 BHP×203 RPM SERVICE SPEED

AE/GENERATOR

A/E: 2×DAIHATSU 6DLB-22 900 PS×720RPM

GEN: 763 KVA

PROPELLER

4 SOLID KEYLESS BLADES

SPEED/CONSUMPTION

ME CONSUMPTION:

DEEP LADEN 15.50 ON 15(380)

BAL/BAN 16.5 ON 15MT

(NOTE: IFO380CST RMG-380)

D/G CONSUMPTION:

PORT-REEFER PLANT OFF: ABT. 1.6MT./DAY(IFO380CST RMG-380)

PORT-REEFER PLANT ON: ABT 3MT/DAY (IFO380CST RMG-380)

FUEL TYPE

IFO380

HOLD NUMBER

4

HATCH NUMBER

4

HATCH SIZE

5.50×5.00

COMPARTMENT

11

Hold No.1:     A,B

Hold No.2-4:   A,B,C

DECKS

3

DECK AREA

2184SQM

DECK HEIGHT

MIN 2.20M

CAPACITY (CBFT)

197056

CAPACITY (CBM)

5580

TANKS CAPACITY

FUEL: 728.26 MT;

GO: 359 MT;

FRESH WATER: 240 MT

REEFER PLANT

R-22 DIRECT EXPANSION

COOLING SECTIONS

8

GRATINGS

WOODEN- MAX LOAD 5MT

(CARGO + FORKLIFT WITH 4 PNEUMATIC TYRES)

TYPE OF THE VENT SYSTEM

VENT

VERTICAL FRESH AIR SUPPLY-3.4 TIME/H;

RECIRCULATION AIR 90-60 T/H

SIDE SHORING

YES

TEMPERATURE

-55/+15℃ IN HO.2-4 NO.1 -32/+15℃

INSPECTION PLACE

CHINA

DELIVERY PLACE

CHINA

PRICE

USD 4.80 MILLION

REMARK

VESSEL IS DRYDOCKING IN COSCO CHINA, REACTIVATED AND REPAIRED, OWNER IS INDUCED TO SELL IT.

ALL SPEEDS/CONSUMPTIONS BASIS CALM SEAS/MAX BEAUFORT 2.

VSL IS BURNING MDO WHEN NAVIGATING AND/OR MENOEUVERING AT REDUCED RPM, IN NARROW/SWALLOW/RESTRICTED WATERS (E.G. ENTERING/LEAVING PORT, TRANSITING CANALS AND SHIFTINGS AT T/S ANCHORAGES ETC.)

FUEL GRADES TO BE IN ACCORDANCE WITH ISO8217:2005(E) AND TO BE SUPPLIED IN ACCORDANCE WITH MARPOL 73/78 ANNEX VI REQUIREMENTS (AND SUBSEQUENT AMENDMENTS).

VESSEL IS EQUIPPED WITH OCEAN FENDERS FOR HIGH SEA TRANSSHIPMENT
