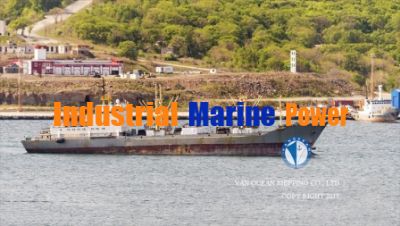

| VESSEL NAME | REF740 |
| TYPE | REEFER CARRIER |
| DEEP FREEZING OR NOT | NO |
| FLAG | RUSSIA |
| PORT OF REGISTRY | NAKHODKA |
| BUILT YEAR | 1987 |
| CLASS NOTATION | KM L1 [1] REF (L1 AT D＜6.48M) |
| LBP (M) | 117.33 |
| BEAM (M) | 18.00 |
| SUMMER DRAFT (M) | 7.96 |
| GT (MT) | 6665.00 |
| PANAMA GT (MT) | 7214.00 |
| SUEZ GT (MT) | 6670.00 |
| NT (MT) | 2596.00 |
| PANAMA NT (MT) | 4592.00 |
| SUEZ NT (MT) | 2001.00 |
| SUMMER DWT (MT) | 7468.60 |
| GEAR(S) | DERRICKS: 8 (TWICE 2x4), SWL 3.2MT, OUTREACH 4M |
| M/E(S) | MAN/B&W 6ДKPH 45/120-7 |
| SPEED/CONSUMPTIONS | BALLAST: ABT. 12.50KTS ON ABT. 15.5MT IFO180 RME25 ISO 8217 LOADED: ABT. 11.50KTS ON ABT. 16.5MT IFO180 RME25 ISO 8217 AE CONSUMPTION: AT SEA REEFER PLANT ON/OFF: ABT. 2.4/2.2MT MGO IN PORT REEFER PLANT ON/OFF: ABT. 2.4/2.2MT MGO IN PORT BOILER WINTER/SUMMER: ABT. 3.1/2.0MT IFO |
| FUEL TYPE | IFO180, MGO |
| BUNKER CAPACITY (CBM) | 1566 |
| TANKS CAPACITY (CBM) | FW: 250; MGO: 843; LO: 42 |
| NUMBER OF CARGO HOLDS | 4 |
| HATCH NUMBER | 4 |
| HATCH TYPE | MACGREGOR HYDRAULIC |
| HATCH SIZE (M) | 3.8 x 4.8 |
| COMPARTMENT(S) | 12 |
| CARGO CAPACITY (CBFT) | 234774 |
| CARGO CAPACITY (CBM) | 6448 |
| TEMPERATURE ZONE(S) | 5, 1A, 1BC, 2ABC, 3ABC, 4ABC |
| TEMPERATURE (℃) | -28/--8/+3 |
| TYPE OF VENT SYSTEM | VERTICAL/HORIZONTAL AIR COOLING, TEMPERATURE SEPARATED BY HOLDS |
| CREW | 31 RUSSIAN/INDONESIAN CREW |
| PRICE | USD 50 MILLION (7 VESSELS IN BLOCK) |
| REMARK(S) | HULL HEIGHT 10.7M MAX. DECK LOAD: TANKTOPS: 9.75MT/SQM HATCH COVER: 3MT/SQM TWEEN DECK: 2MT/SQM WATER DECK: 1.34MT/SQM |
