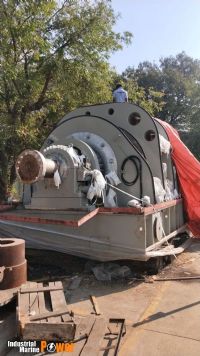

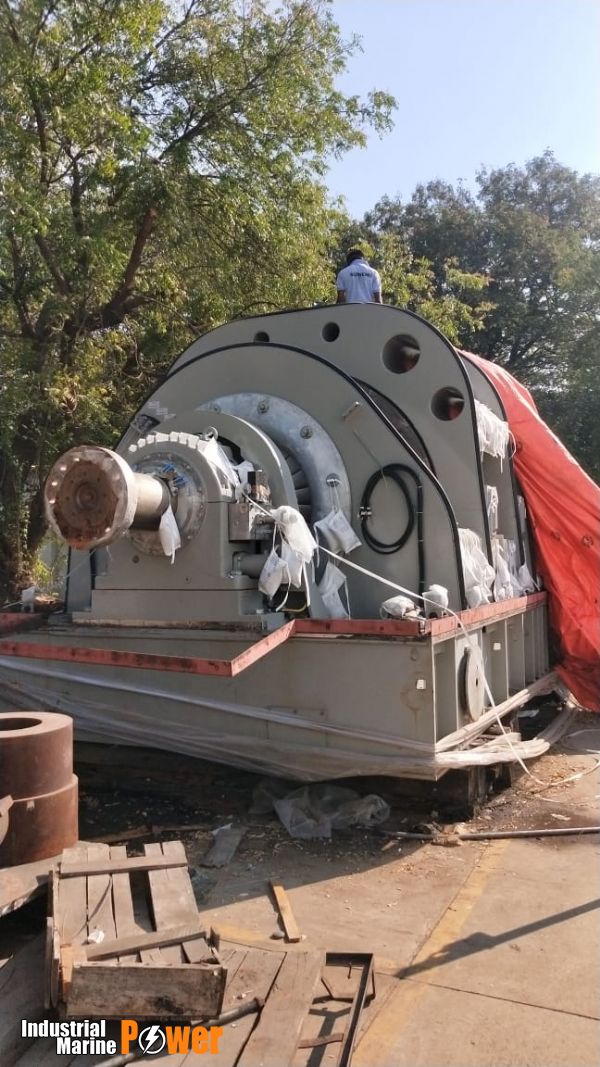

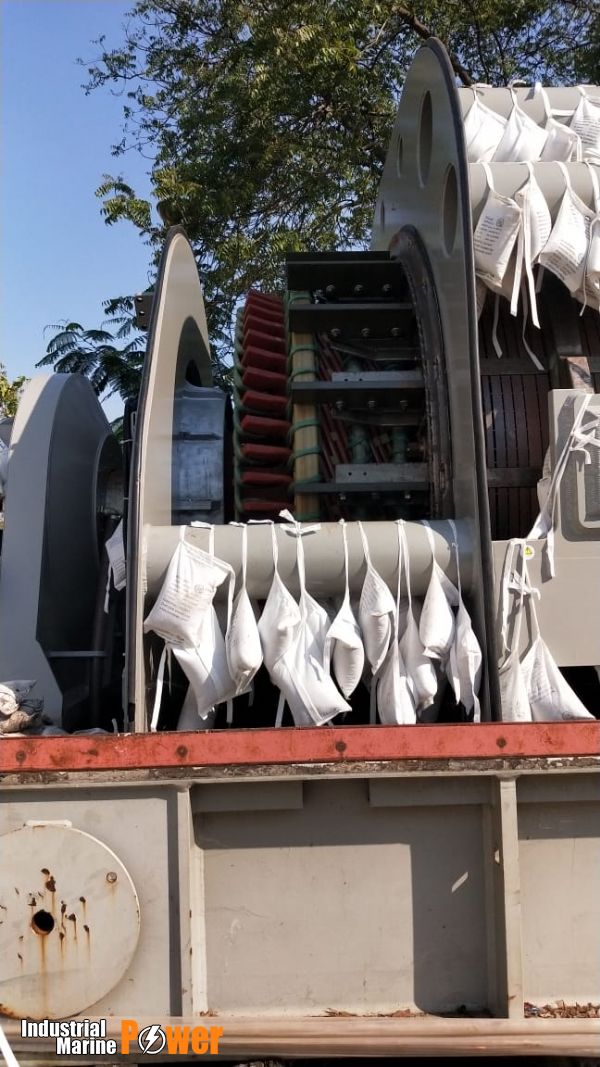

Subject: Usedn Generator - 117 MW - SIEMENS
Date: 1/27/2025 10:19:45 AM
Details: Reviews 2
Attached item is available with us for sale for a very good attractive price compared to new one. Interested party please
Product details given below:
| SIEMENS | SIEMENS AG PG P25 | ||||
| PO BOX 800361 | |||||
| D99029Erfurt | |||||
| KIND OF MACHINE | GENERATOR | SERIAL NUMBER | 12010258 | YEAR OF MFG | 2011 |
| MACHINE CODE | SGEN5-100A-2P | FREQUENCY | 50 HZ | DIRECTION OF ROTATION | CCW |
| NUMBER OF PHASES | 3 | PHASE SEQUENCE | U1 V1 W1 | RATED SPEED | 3000 RPM |
| CONNECTION | YY | RATE CURRENT | 6175 A | CLASS OF RATING | S1 |
| RANGE OF RATED VOLTAGE | 11000 V +5 / -10% | RATED POWER FACTOR | COS () = 0.85 | ||
| RATED POWER | 117650 KVA | TYPE OF COLLING | AIR COOLING | ||
| TYPE OF EXCITATION | SELF EXCITATION | COOLING AIR TEMP | 47 C | DEGREE OF PROTECTION | IP 54 |
| CLASS OF INSULATION DESIGN | F | TYPE OF CONSTRUCTION | IM 7215 | ||
| TEMP. RISE CORRESPONDS TO CLASS | B | RATING AND PERFORMANCE STANDARD | IEC 60034 | ||
| TOTAL WEIGHT | 161300 KG | STATOR WEIGHT | 79950 KG | ||
| ROTOR WEIGHT | 31000 KG | ||||
| MADE IN GERMANY | |||||
| Siemens AG Energy sector | |||||
| Fossil Power Generation | |||||
