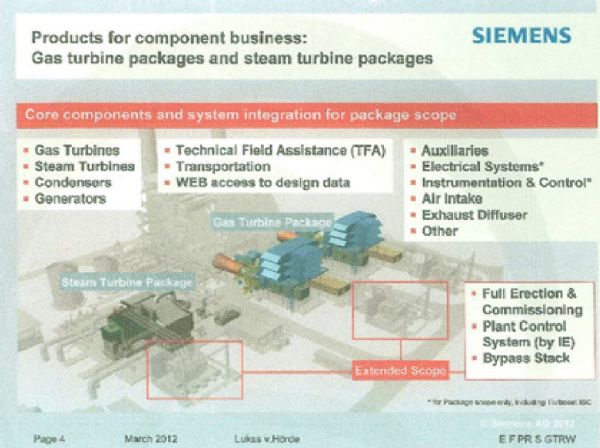

We are conducting a marketing campaign to find a suitable lead for selling Siemens CCPP (Combined Cycle Power Plant) with capability of producing 1.3 GW and upgradable to 3.5 GW utilizing full power efficiency at a very competitive price. 9 GT (gas turbines) are offered with attached specifications including steam turbine cycles.

Steam Turbine with 9 GT (Gas Turbine) are integrated in a CCPP able to generate 1.3 GW power with the below optimum specifications:

• HP – Steam Flow = 2021 kg/s
• HP – Steam Pressure = 67.1 bar
• HP – Steam Temp. = 311 DegC
• Pressure @ LP inlet = 9.8 bar
• Temp. @ LP inlet = 256 DegC
• LP – Exhaust System Flow = 1120 kg/s
• Condenser Pressure = 0.103 bar
• Turbine Generator Speed = 1500 rpm
• Generator Terminal output = 1308 MW
• Generator Capacity = 1635 MVA
• Net Plant Efficiency = 35.7 %
• Assumed boiler efficiency = 93 %
• Estimated plant auxiliary = 70 MW

SIEMENS F Class Gas Turbines:

• Siemens SGT5 – PAC 4000F
• Gross power output: 292.2 MW
• Gross efficiency: 39.7 %
• Exhaust Gas Temp.: 583 DegC
