Viper Wire Rope Lubricator

The Viper Wire Rope Lubricator MK II provides fast and effective lubrication of wire ropes at speeds up to 2,000 metres per hour.

It eliminates the slow and labour-intensive task of manual lubricant application, at the same time achieving more thorough results by forcing lubricant under pressure right through to the wire rope core.

The Viper Mk II boasts:

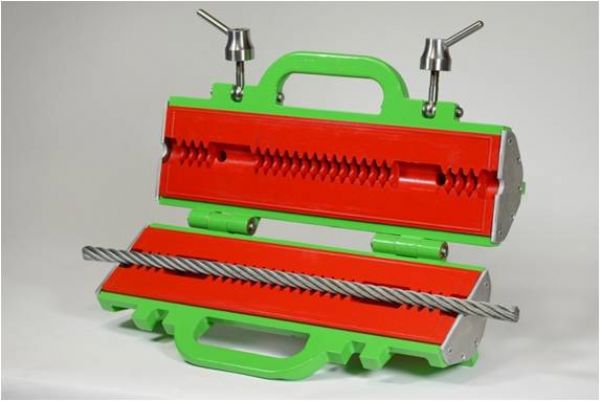

• new Hi Visibility Aluminium Collar – 32% lighter and easier to use
• cast handles in the collar - Allows “one person” operation of Viper MkII
• purpose built Viper High volume, High pressure grease pump – All rope sizes with one pump

With the success of the Viper Wire Rope Lubricator, manufacturers Lubrication Engineers Australia announce the much anticipated Viper Mk II Wire Rope Lubricator launch.

Watch the Viper Wire Rope Lubricator Mk II Operational video: www.viperwrl.com

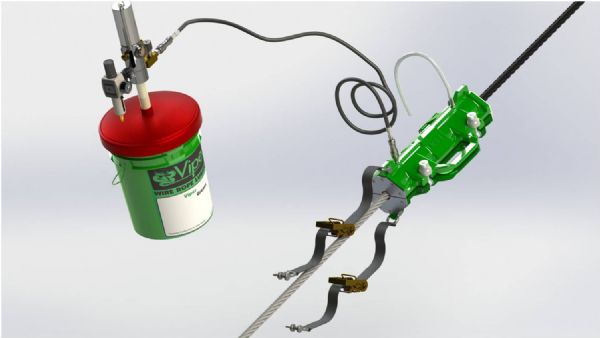

Those in the marine, mining and heavy industry are already sold on the benefits of this automated, single pass wire rope lubrication technology which:

• simplifies and speeds up the rope lubricating process: eliminates manual greasing
• safer for staff, reduced lubricant usage, less leakage and mess
• Viper kit includes a high pressure/high flow grease pump
• provides grease penetration and displaces moisture from the rope core
• reduces downtime associated with rope lubrication which improves equipment availability
• ropes cleaned and lubricated at speeds of up to 2,000 metres per hour
• lubricates all major rope sizes, Viper MkII lubricates rope from 8mm (5/15”) to 67mm (2-5/8”) while the Viper Maxi MkII will lubricate up to 165mm (6-9/32”)
• Custom units also available

The Viper MkII Wire Rope Lubricator has many applications including wharf cranes, ship cranes, ROV cables, mine winders, mobile cranes, oil and gas platforms, anchor ropes, deck winches, overhead cranes and ship loaders.

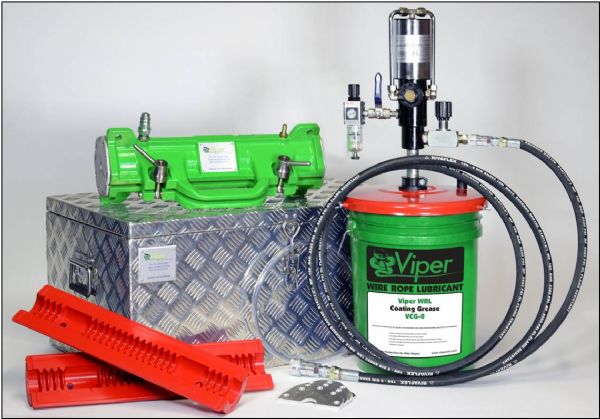

The Viper Mk II kit comes complete within its own robust, aluminium storage box.

Viper recommend the use of Viper WRL Coating Grease VCG-1 with the Viper MkII. This grease is specifically designed for the offshore industry where immersion in water occurs. Viper WRL Penetrating Grease VPG-0 has excellent penetrating ability, disperses moisture, will not drip or run plus provides extreme pressure protection for sheaves and rope drums. Both products are specifically designed for use with the Viper and for use in marine and mining applications.

To purchase or upgrade, contact:

• Bill Gommers Viper WRL Phone: +61 2 9636 5655 Mobile: +61 458 231 811
• Email: sales(at)viperwrl(dot)com
• Web: http://viperwrl.com
• Viper Wire Rope Lubricator Mk II Operational video: http://youtu.be/YJK7nlenSTM.
