EMD 20-645-E4 DIESEL ENGINE, 2625 KVA, 50 CYCLES

• 1 EMD engine generator

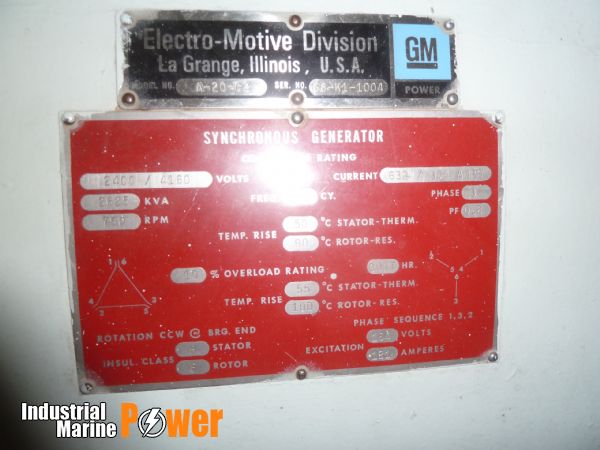

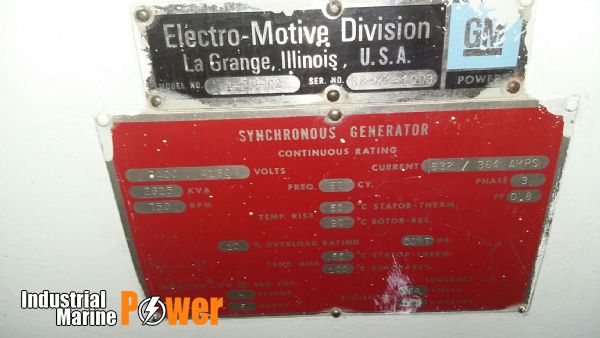

• Model: A-20-C2
• Serial Number: 68-K1-1004
• 2625 KVA cos fi: 0.8.
• Speed: 750 rpm.
• 20 cylinders, 50 cycles.
• Basic Charge: 2100 KW.
• Top Charge: 2300 KW.
• Voltage: 2400/4160 Vca
• Excitation: static 125 Vcc
• Engine hours: 1.400 h
• Last maintenance: November 2020
• Engine Weight: 19.545 kg.
• Generator Weight: 8.210 kg.
• Total Weight: 68 tn
• Approximate Total Size: 10m long 2m wide 3m high

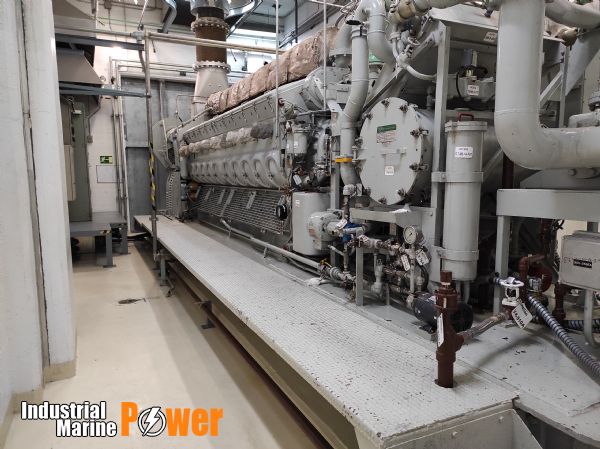

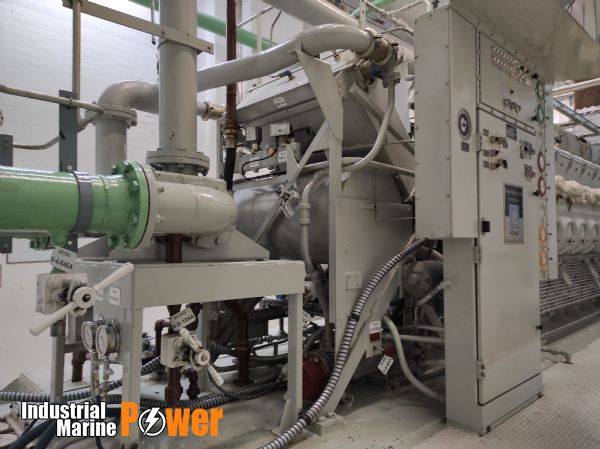

Motor-generator consisting of a 20-cylinder diesel engine (including fuel supply, lubrication, cooling, air intake, exhaust and starting systems, a heater and local instrument and control panel). A 4160V generator. The engine and generator are mounted on a common bedplate.

This is emergency equipment, therefore it has very few hours of use. It has been properly maintained until 2020.

Throughout its life, it has undergone some important modifications: replacement of power units, starter motors, replacement of heat exchangers, installation of exhaust thermocouples for each cylinder, etc.

Two units available
