Subject: For Sale: Wartsila 18V32LN Crankshaft STD Size

Date: 3/13/2023 3:48:36 PM

Details: Reviews 0

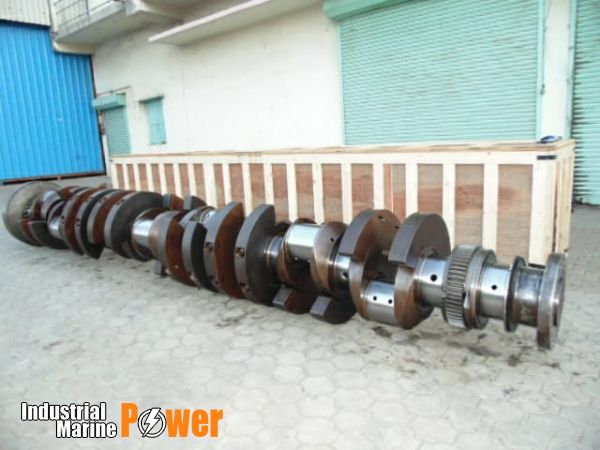

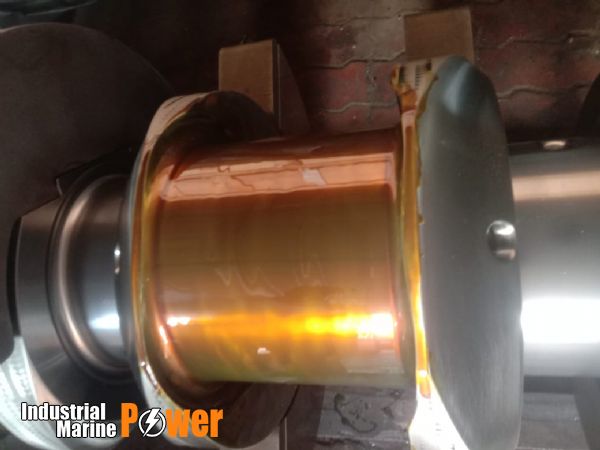

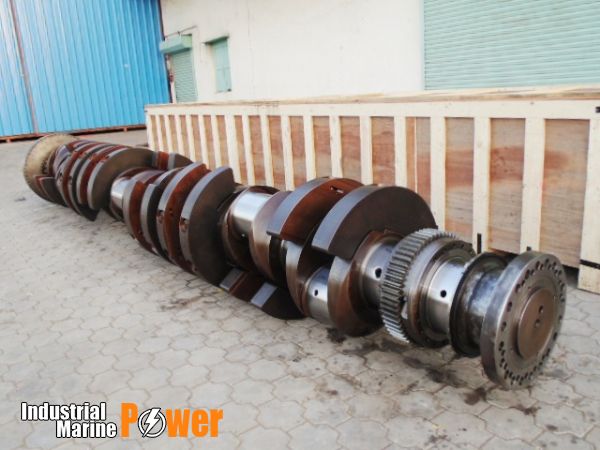

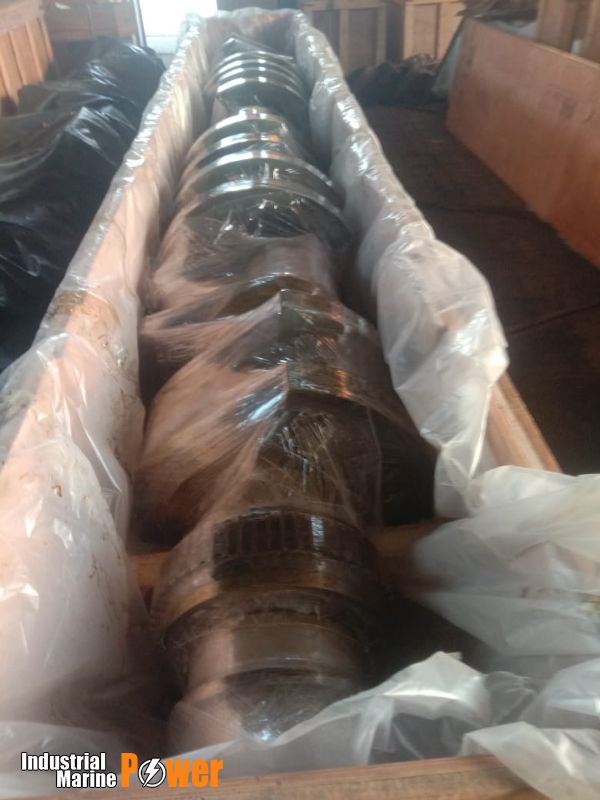

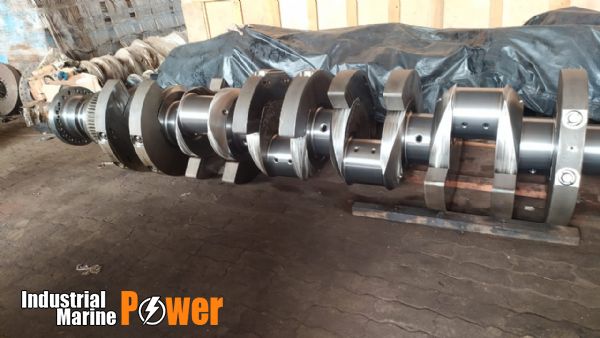

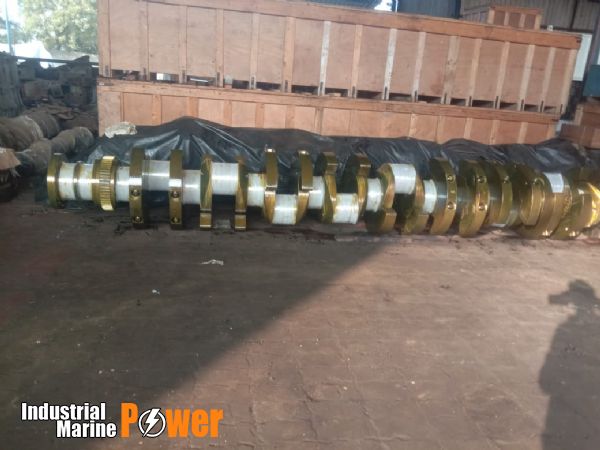

We have in stock Wartsila 18V32LN and Wartsila 18V32 STD size Crankshaft is available in stock location is Istanbul Turkey


If anybody interested please let me know.


Best Regards

Burak Aldemir

Mobile: +90 532 698 66 21


To see the contact details please Login or Register
Contact Name:
Company Name:
Mobile Phone:

Comments      Add New Message

Leave a reply

Replace the security code

What is Wartsila 18V32 Engine ?

The Wartsila 18V32 is a large diesel engine commonly used for power generation in marine and land-based power plants. It is manufactured by the Finnish company Wartsila, which specializes in producing large engines for various applications.

The 18V32 engine is a four-stroke, turbocharged engine with 18 cylinders arranged in a V-shape. It has a maximum power output of around 7.5 MW and is typically used for base load or peak shaving power generation in large industrial and commercial applications.

The engine is designed for high efficiency and reliability, with a long operating life and low maintenance requirements. It is also designed to be easily integrated into power plant systems, with a modular design that allows for flexible installation and operation.

Overall, the Wartsila 18V32 engine is a powerful and versatile engine that has been widely used for power generation in a variety of applications around the world.


What is Wartsila 18V32LN Diesel Engine Specifications ?

The Wartsila 18V32LN is a high-performance diesel engine commonly used for power generation in industrial and marine applications. Here are some of the key specifications of the engine:

  • Engine type: Four-stroke, turbocharged, V-configuration
  • Number of cylinders: 18
  • Bore and stroke: 320mm x 400mm
  • Total displacement: 86.6 liters
  • Compression ratio: 13.5:1
  • Maximum continuous power output: 7,560 kW (10,263 hp) at 720 rpm
  • Fuel consumption: 198 g/kWh at 100% load
  • Lubricating oil consumption: 0.3 g/kWh
  • Overall efficiency: 48.3% at 100% load
  • Emissions compliance: Meets IMO Tier II and EPA Tier 2 emissions regulations

The Wartsila 18V32LN engine is known for its high efficiency, reliability, and low emissions. It is typically used in large power generation plants, including those in the marine industry, and is designed for easy integration into existing power systems.

What is the Wartsila 18V32 Diesel Engine Crankshaft ?

The crankshaft of the Wartsila 18V32 diesel engine is a critical component that converts the linear motion of the pistons into rotational motion to generate power. The 18V32 engine has an 18-cylinder V-configuration, and the crankshaft is designed to handle the high stresses and loads that are generated by the combustion of fuel in each cylinder.

The crankshaft of the Wartsila 18V32 engine is a forged steel component that is precision machined to ensure that it is perfectly balanced and able to operate smoothly at high speeds. It is made up of multiple sections that are bolted together, with each section containing several main bearing journals and connecting rod journals.

The crankshaft of the 18V32 engine is supported by main bearings that are located in the engine block. The main bearings are designed to provide a low-friction surface for the crankshaft to rotate on, and they are lubricated by a pressurized oil system that ensures they remain properly lubricated at all times.

Overall, the crankshaft of the Wartsila 18V32 engine is a complex and highly engineered component that is essential to the smooth and reliable operation of the engine. It is designed to withstand high stresses and loads, and to provide long-lasting and trouble-free service in a variety of power generation applications.

What is the fuel consuption of Wartsila 18V32LN Diesel Engine ?

The fuel consumption of a Wartsila 18V32LN diesel engine depends on various factors such as load, ambient conditions, and maintenance, among others. Therefore, it is difficult to provide a specific fuel consumption figure for this engine without more information.

However, in general, the fuel consumption of diesel engines is measured in terms of specific fuel consumption (SFC) or fuel consumption rate (FCR) and is expressed in grams per kilowatt-hour (g/kWh) or liters per hour (l/h).

For example, the Wartsila 18V32LN diesel engine has a rated output of up to 9,720 kW at 750 rpm. At full load, the SFC of this engine can be around 190 g/kWh or lower, which means it consumes 190 grams of fuel per kilowatt-hour of power generated.

It is worth noting that the actual fuel consumption of the engine may vary based on the operating conditions and other factors mentioned above. Therefore, it is recommended to consult the manufacturer's specifications or contact a qualified Wartsila service provider for more accurate information.

Where can we use Wartsila 18V32LN Diesel Engines ?

The Wartsila 18V32LN diesel engine is a powerful and efficient engine that can be used in a wide range of applications. Here are some of the most common applications where the Wartsila 18V32LN engine is used:

  1. Power generation: The Wartsila 18V32LN engine is commonly used in power plants to generate electricity. It is a reliable and efficient engine that can produce large amounts of power, making it ideal for use in grid-connected power plants or in remote areas where there is no access to grid power.

  2. Marine propulsion: The Wartsila 18V32LN engine is also used in marine applications as a propulsion engine for ships and vessels. Its high power output and fuel efficiency make it a popular choice for use in large cargo ships, tankers, and other vessels.

  3. Industrial applications: The Wartsila 18V32LN engine is used in a wide range of industrial applications, including oil and gas, mining, and manufacturing. It can be used to power large generators, compressors, and other heavy-duty equipment.

  4. Cogeneration: The Wartsila 18V32LN engine is also used in cogeneration applications, where it is used to produce both electricity and heat. This makes it an ideal choice for use in district heating systems and other applications where there is a need for both electricity and heat.

In summary, the Wartsila 18V32LN diesel engine is a versatile and reliable engine that can be used in a wide range of applications, including power generation, marine propulsion, industrial applications, and cogeneration.
