Gas turbine
| TurbinE | |
|---|---|
| Manufacturer | General electric |
| Model | PG 6541/B |
| Fuel types | Líquido y gas |
| Base Load ISO Condition | 45.83 MW |
| Peak Load ISO Condition | 49.79 MW |
| Levels | 5163 rpm |
| Generator and exciter moment of inertia | 5.600 kgm2 |
| Year of manufacture | Enero 1992 |
| Year of shutdown | 2014 |
| Counters | |
| Manual starts | 527 |
| Total starts | 674 |
| Quick starts | 7 |
| Ignition starts | 490 |
| Emergency trips | 223 |
| High exhaust temperature trips | 23 |
| Timers | |
| Total hours of flame operation | 154.029 |
| Peak position operation | 8,3 |
| Gas fuel operation | 137.689 |
| Distillate fuel operation | 99.995 |
| Equivalent starts | 2.720 |
| Equivalent hours | 184.830 |
| Last inspection | 9 January 2013 |
Inspections: Inspection records are available from 2000 to 2013. All inspections were carried out in accordance with the intervals recommended by the manufacturer and using a service specialised in this type of activity.
Note: In 2011 an upgrade was performed on the turbine, through the intervention of the components of the hot gas path. The upgrade includes the replacement or modification of components such as stators, fuel nozzles, combustion liners, transition pieces, crossfire tubes, turbine blades, as well as improvements such as new geometries, new coatings, improvements in the cooling of the hot parts and in the sealing of the gases in the hot gas pathways. This modification also involves changing the speed reduction gearbox, as the turbine speed is increased from 5,114 RPM to 5,163 RPM. With the upgrade the power output, at ISO CONDITION, at base load is 45.83 MW and 59.73 MW at peak load, operating with natural gas as fuel.
| Generator | |
|---|---|

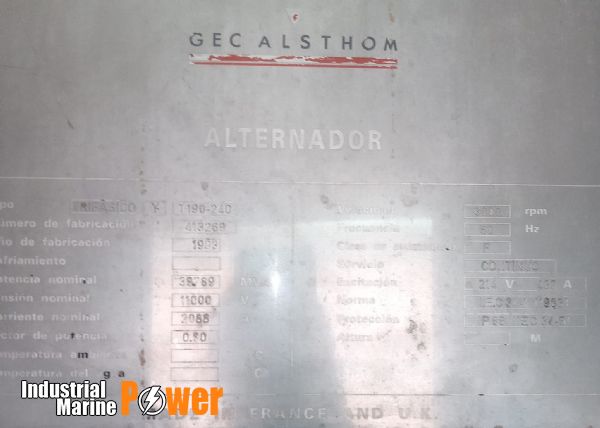

| Manufacturer | GEC Alsthom (ALSTOM) |
| Model | T190-240 |
| Connection type | Estrella |
| Year of manufacture | 1993 |
| Rated power | 39.789 MVA |
| Rated voltage | 11000 V |
| Rated current | 2088 A |
| Power factor | 0.9 |
| Speed | 3000 rpm |
| Frequency | 50 Hz |
| Insulation class | F |
| Continuous duty | |
| Excitation | 214 V / 437 A |
| IEC 34-1 Standard | |
| Protection | IP55 (IEC 34-5) |
| Control system | |
|---|---|
| Manufacturer | General Electric |
| Model | SPEEDTRONIC Mark V |
| Gearbox | |
|---|---|
| Manufacturer | Flender |
| Model | TRL 65 CV (G3) |
| Installation | September 2011 |
| Shutdown | 2014 |
| Condition | Very good, gears like new |
| Weight table Generator (Kg) | |
|---|---|
| Stator weight | 35.600 |
| Generator and exciter rotor weight | 15.400 |
| Gearbox weight | 12.000 |
| Socket | 16.600 |
| Package box | 14.200 |
| Exciter stator | 380 |
| Bearing | 800 |
| Miscellaneous | 3220 |
| Total | 98.200 |
| Table Turbine Weights (kg) | |
|---|---|
| Complete rotor weight | 11363 |
| Weight compressor rotor | 5636 |
| Weight turbine wheels and spacer | 4818 |
| Weight diffuser | 1091 |
| Weight upper half of exhaust hood frame | 2000 |
| Weight upper half of compressor casing | 1409 |
| Weight upper half of inlet casing | 2500 |
| Weight other covers | 3836 |
| Weight total turbine | 41659 |
| Included items |
|---|
| Gas turbine PG 6541/B |
| Generator |

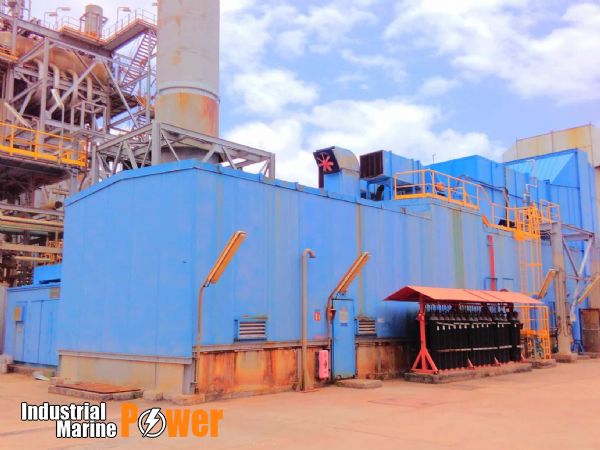

| Encapsulated Gas turbine |
| Medium voltage switchgear |
| Compressor washing skid |
| Exhaust drain skid |
| Diesel pumping skid |
| Diesel oil superheater |
| Drainage tank - IM3 |
| Control compartment |
| Air filter |
| Gas sweep skid |
| Steam injection group |
| Flat pack assembly |
| Cooling system |
| Skid gas separator filter |
| CO2 skid |
| Diesel oil filtration skid |
| Gas ventilation skid |
