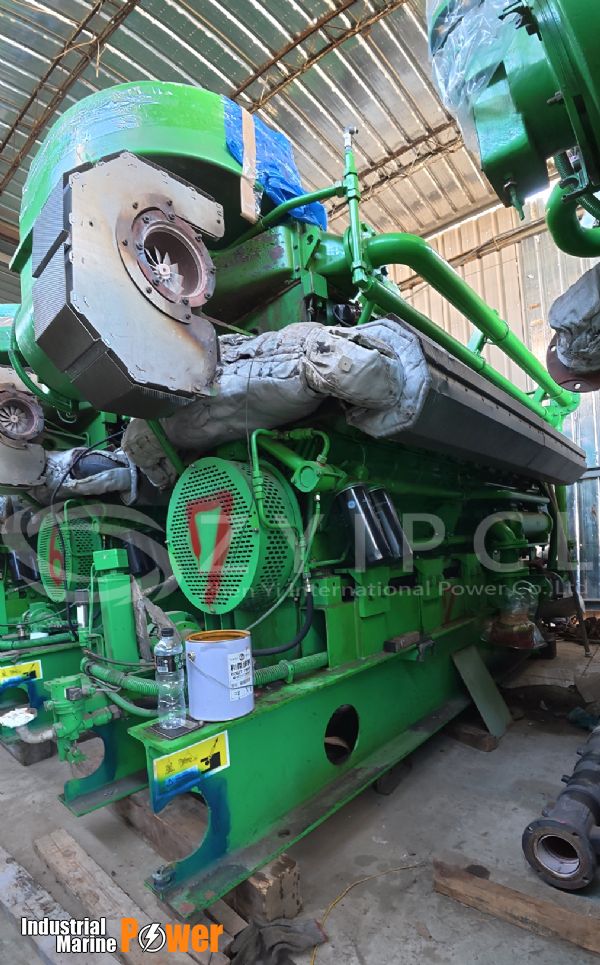

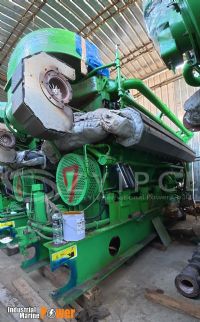

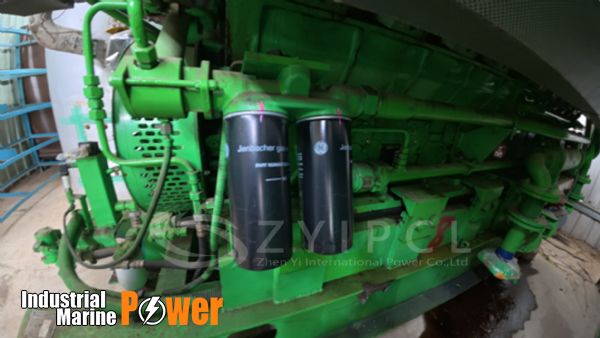

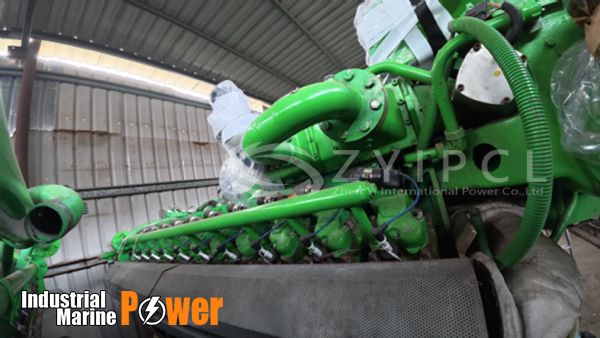

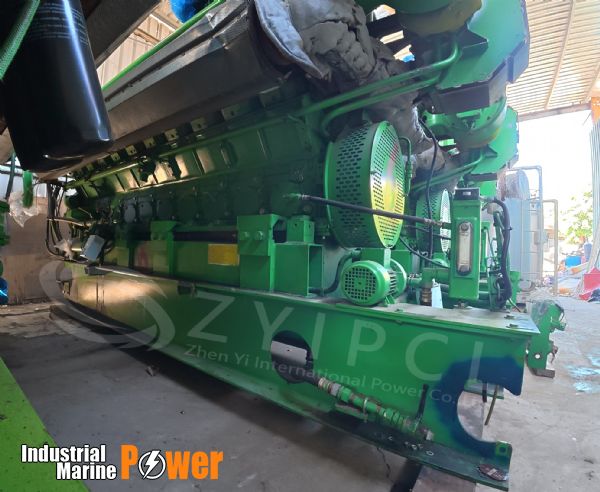

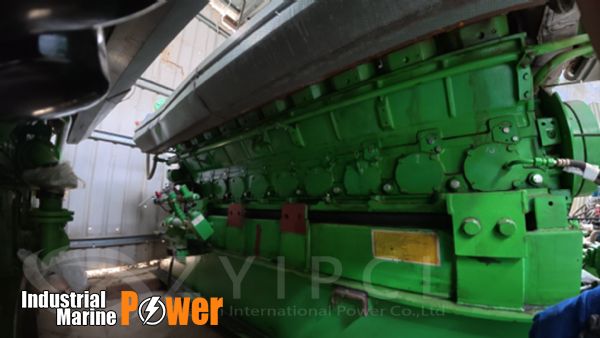

Jenbacher JS320 Natural Gas Generator Set

Synchronous Generator

• Type: JS320
• Output: 938 kW
• Phase: 3 Phase
• Rated Current: 82.1 A
• Number of Poles: 4
• Rated Voltage: 6,600 V
• Power Factor: 0.98
• Rated Speed: 1,500 rpm
• Frequency: 50 Hz
• Duty Rating: Continuous
• Excitation Voltage: 150 V
• Field Current: 75 A
• Cooling Method: IC01
• Cooling Air Temperature: 40°C
• Weight: 2,640 kg
• Year of Manufacture: 2005

AC Exciter

• Output: 21 kVA
• Power Factor: 0.9
• Phase: 3 Phase
• Number of Poles: 12
• Voltage: 125 V
• Current: 97 A
• Excitation Voltage: 80 V
• Excitation Current: 10.9 A
• Cooling Method: IC01
• Cooling Air Temperature: 40°C
• Protection Class: IP22S
• Model: ED-AA

Excitation Device

• Type: Brushless Excitation System
• Output: 18 kW
• DC Voltage: 150 VDC
• DC Current: 120 ADC
