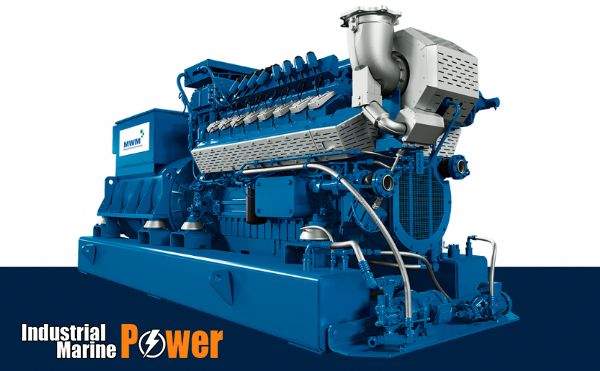

Output range from 400 kWel to 1,000 kWel
Technical data 50 Hz
| TCG 3016 | ??Unit | V08 | V12 | V16 | V16S |
| Bore x stroke | mm | 132/160 | 132/160 | 132/160 | 132/160 |
| Displacement | dm3 | 17.5 | 26.3 | 35.0 | 35.0 |
| Speed | min-1 | 1,500 | 1,500 | 1,500 | 1,500 |
| Mean piston speed | m/s | 8.0 | 8.0 | 8.0 | 8.0 |
| Length 1) | mm | 3,100 | 3,830 | 4,200 | 4,200 |
| Width 1) | mm | 1,780 | 1,780 | 1,780 | 1,780 |
| Height 1) | mm | 2,150 | 2,150 | 2,150 | 2,150 |
| Dry weight genset | kg | 5,720 | 7,000 | 8,070 | 8,560 |
Natural gas applications
NOx ? 500 mg/Nm3 2)
| TCG 3016 | Unit | V08 | V12 | V16 | V16S |
| Configuration | P 5) | P 5) | P 5) | S 6) | |
| Electrical power 3) | kW | 400 | 600 | 800 | 1,000 |
| Mean effective pressure | bar | 18.9 | 18.9 | 18.8 | 23.5 |
| Thermal output 4) ±8% | kW | 404 | 617 | 819 | 1,123 |
| Electrical efficiency 3) | % | 43.1 | 43.4 | 43.6 | 41.5 |
| Thermal efficiency 3) | % | 43.6 | 44.6 | 44.6 | 46.6 |
| Total efficiency 3) | % | 86.7 | 88.0 | 88.2 | 88.1 |
1) Transport dimensions for gensets, components set up seperately must be taken into consideration.
2) NOx ? 500 mg/Nm3; exhaust gas dry at 5 % O2.
3) According to ISO 3046-1 at U = 0.4 kV, cosphi = 1.0 for 50 Hz,a minimum methane number of MN 70(V08,V12,V16) and MN 80 (V16 Configuration S) for natural gas and MN 134 (sewage gas) for biogas applications.
4) Exhaust gas cooled to 120 °C for natural gas and 150 °C for biogas.
5) P = High Efficiency. Optimized for high electrical efficiency
6) S = High Density. Increased power density.
The values given on these datasheets are for information purposes only and not binding. The information given in the offer is decisive.
