BV ship inspection Suitable for light ships and high speed patrol boats New In stock China

Subject: BV ship inspection Suitable for light ships and high speed patrol boats New In stock China


Date: 10/19/2022 6:21:13 AM

Details: Reviews 0

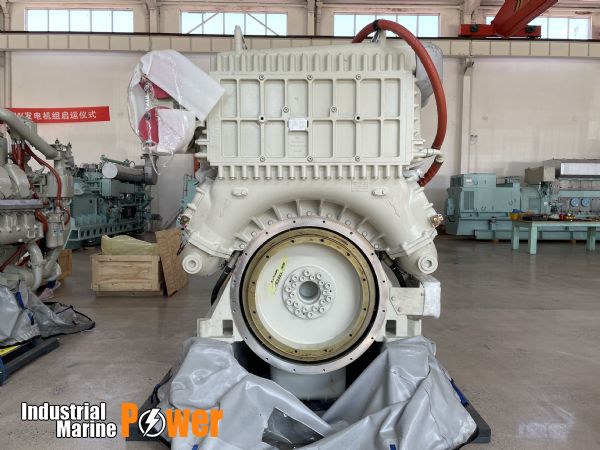

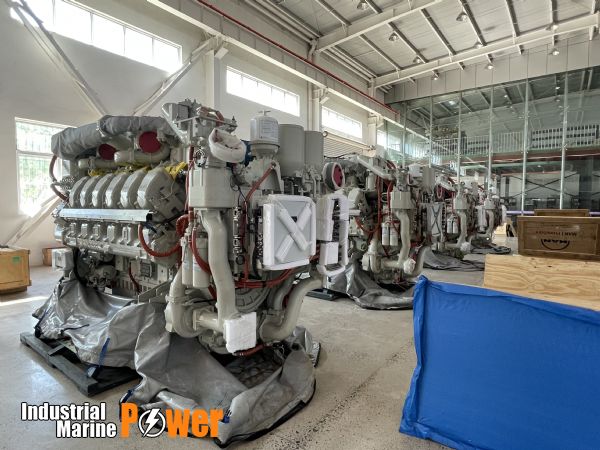

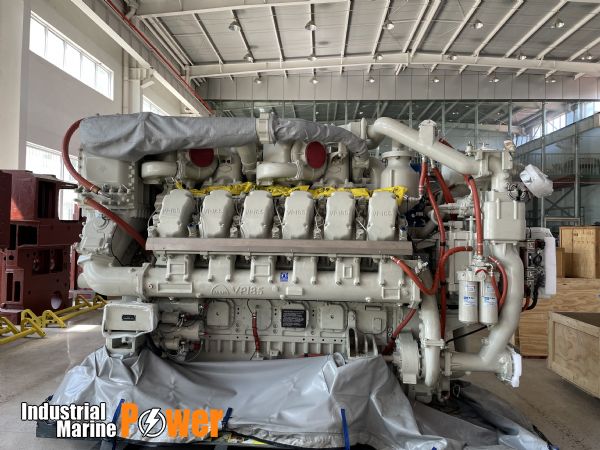

MAN 12 VP 185 MARINE ENGINES

  1. BACKGROUND

These four sets engines were made in 2017, and produced for a government ship project, after the project was cancelled, BFMP bought and stored. All of these units are 0 hour running in very good condition. Now they are stored in BFMP’s warehouse in Qinhuangdao, China.



  1. MAIN TECHNICAL INFORMATON

Diesel engine model:                          MAN 12VP185TCM

No. Of Cylinders:                              12

Bore:                                          185mm

Stroke:                                        196mm

Compression Ratio:                            13.1:1

Idling Speed(Basic Engine):                     600 rev/min

Directional Rotation:                          Anti-clockwise looking on flywheel

Configuration:                                 90 Vee

Rated power:                                 2720kW

Rated speed:                                 1937rpm

Air intake temperature:                       +45° Centigrade

Sea water temperature:                       + 32° Centigrade

Barometric pressure:                           +1000 mbar

Exhaust back pressre:                         +25 mbar

IMO NOx Emission Regulations:               IMO Marpol Annex VI Tier II

Fuel consumption:                            220g/kw.h +5%

Lubricating oil consumption:                   less than 1.5Kgs/ hour at 100% load.



just inquiry us

Whatsapp/phone:086-18233550315
