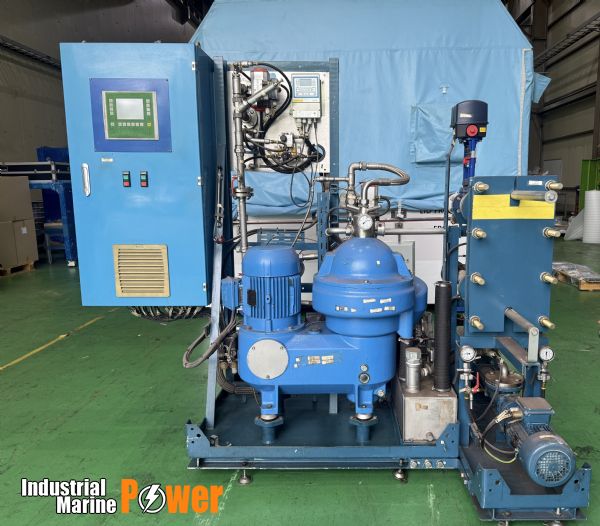

A used GEA Westfalia BilgeMaster-E 2500 cleandesign marine bilge water treatment system is available for sale in the Republic of Korea.
The system uses a self-cleaning WSE 20-01-037 disc-stack centrifugal separator to remove oil and solid contaminants from oily bilge water. It is supplied as a skid-mounted package with a feed pump, plate heat exchanger, automatic valves, PLC control panel and oil content monitor.
The equipment is suitable for shipboard bilge water treatment, marine retrofit projects, shipyards and other oily wastewater treatment applications.
Equipment Identification
- Manufacturer: GEA Westfalia Separator Group GmbH
- Country of manufacture: Germany
- System model: BilgeMaster-E 2500 cleandesign
- System serial number: 0387-711
- Year of manufacture: 2015
- Separator type: WSE 20-01-037
- Separator serial number: 9072-056
- Rated treatment capacity: 2,500 litres per hour, 2.5 m³/h
- Plan number: Q4020000001-9913-310
Main Components
- GEA Westfalia self-cleaning disc-stack centrifugal separator
- WEG 7.5 kW main drive motor

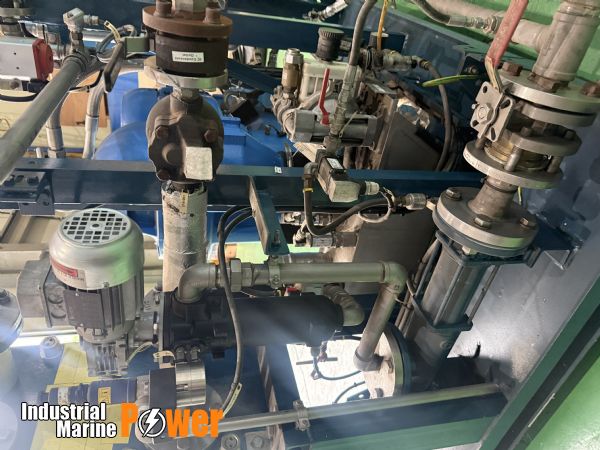

- NORD 1.1 kW geared motor and feed pump
- Plate heat exchanger for feed temperature control

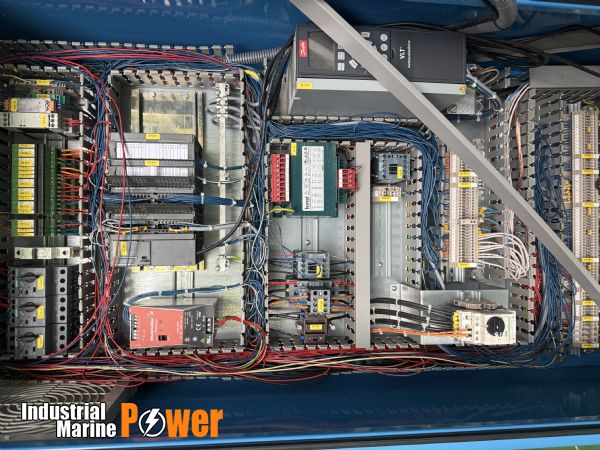

- Siemens S7-300 series PLC
- Siemens touch-screen HMI
- Danfoss VLT AutomationDrive
- Automatic process valves
- Pressure gauges, sensors and process piping

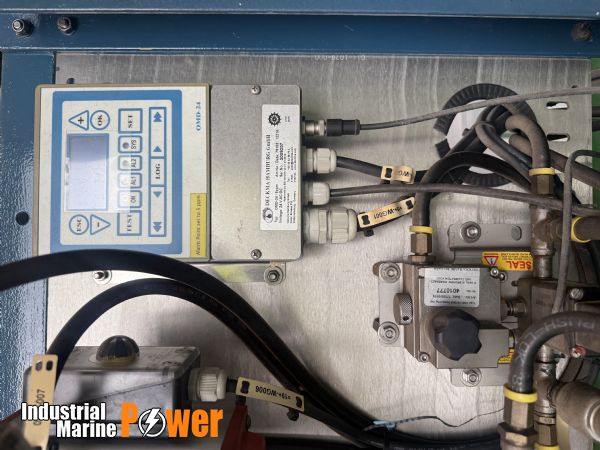

- DECKMA HAMBURG OMD-24 oil content monitor
- Oil monitor alarm setting: 5 ppm
- Skid-mounted control cabinet
The PLC-based control system provides automatic operation, process monitoring, temperature and pressure control, alarm handling and automatic solids discharge functions.

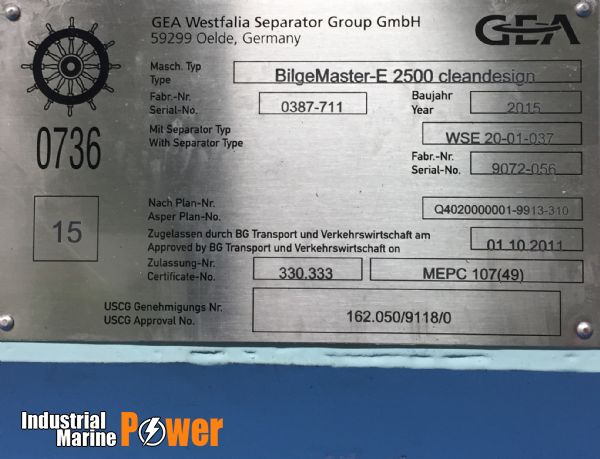

Approval Markings Shown on the Equipment Nameplate
- IMO resolution: MEPC.107(49)
- BG approval certificate number: 330.333
- USCG approval number: 162.050/9118/0
- Approval date shown on nameplate: 1 October 2011
The approval date above refers to the type approval shown on the nameplate. The equipment manufacturing year is 2015.
Documentation
The following documentation is available:
- Equipment operating manual
- Purchased-component specifications
- Technical information for major installed components
- Equipment and component nameplate photographs
- Additional photographs available upon request
Availability of the original individual type approval certificates should be confirmed separately. Approval numbers and regulatory references are clearly marked on the equipment nameplate.
Condition
- Used equipment
- Physical condition as shown in the photographs
- Stored in the Republic of Korea
- Inspection can be arranged by prior appointment
- Functional testing and detailed component verification can be discussed before purchase
- Oil monitor calibration status to be confirmed
- Equipment offered in its present condition
Price and Delivery
- Asking price: USD 24,500, negotiable
- Delivery term: FCA [exact terminal name], Busan Port, Republic of Korea
- Incoterms® 2020
- Seller will deliver the equipment to the nominated carrier at the agreed Busan port terminal and complete the required export clearance
- Sea freight, insurance, destination charges, import clearance and all costs arising after FCA delivery are for the buyer’s account
Serious inquiries are welcome. Please provide the intended application, destination country and preferred inspection or shipping schedule when contacting us.
