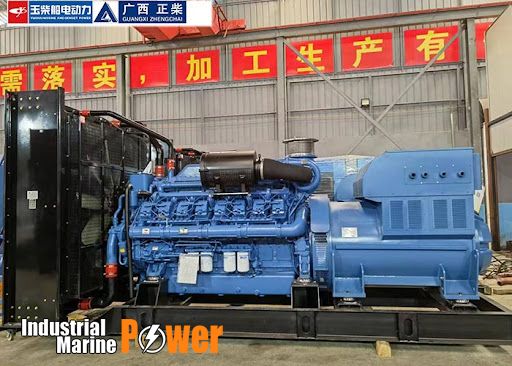

Model YC12VC1680N-D30
Rated power (kW) 1120
Speed (rpm) 1000
Type V-shape, four-stroke, four-valve
Number of cylinders× bore ×
stroke
12×200×210
Displacement (L) 79.13
Intake type Turbocharging with intercooling
Gas control system Imported gas system
Gas intake type Pre-mixing before charging
Gas system inlet pressure (kPa) ? 3
Fuel Low concentration gas (CH4 ? 8%), biogas, oilfield associated gas, natural gas, etc. Power interface SAE00# SAE 21? Overall dimensions of the unit
(L×B×H?mm
6410×2600×2985
Unit power (kW) 1000
