Subject: Brand New/ Unused- (2) Wartsila 20V34SG GasCube Generator Package For Sale


Date: 13.11.2019 03:37:01

Details: Reviews 10

Unused Wartsila 20V34SG GasCube Generator Package

Equipment Description:

(2) Unused Wartsila 20V34SG GasCube Generator Package

  • Can be recertified by Wartsila with the original warranty
  • Facility will help load
  • New In Boxes At Manufacture


  • This consists of (2) 9.4 MW Gas Cubes:
    POWER GENERATION EQUIPMENT
    GENERATING SET (Qty)

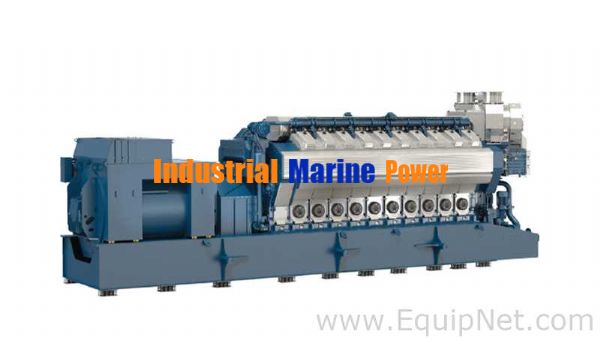

    -Engines: Wärtsilä 20V34SG engine, D-stage (2)
    -Common base frame (2)
    -Flexible connections between engine and external piping (2)
    -Generating set assembly (2)
    -Set steel springs (2)
    -Language plates - other than English (2)
    -Engine maintenance platform - prefabricated (2)

  • GENERATORS  (QTY)
    Generator – 13800 V (2)
    Flexible coupling (2)
    Flywheel cover (2)
    Generator Type: The generator is of the synchronous, three-phase, brushless, salient pole type.
    Generator main data
    -Generator apparent power 11712 kVA
    -Rated power factor 0.8
    -Nominal voltage 13800 V
    -Rated current (In) 490 A
    -Voltage adjustment range ±5 %
    -Frequency 60 Hz
    -Speed 720 Rpm
    -Continuous short-circuit current >2.5 x In
    -Insulation class F
    -Temperature rise stator B
    -Temperature rise rotor B
    -Cooling method Air cooled
    -Enclosure IP23
    -Standard IEC60034
  • Generator Construction:
    -The generator is designed to operate together with a reciprocating engine. The stator frame is constructed with a rigid welded steel structure. The stator core is built of thin electric steel sheet laminations. The rotor consists of a shaft and salient pole type main revolving field.
    The generator achieves very high efficiency because of the exceptional thermal conductivity created by the tight fit between the coils and the stator core.
    -Terminals: The six stator winding ends are brought to terminal boxes on the generator sides. Terminals for monitoring and auxiliary equipment have separate terminal boxes.
    -Damper winding: The generator is provided with a damper winding for parallel operation with other generators and with a separate power grid, if so connected.
    -Shaft and bearing: The generator is horizontally mounted and provided with two sleeve bearings. The generator rotor is designed to minimise the effect of torsion rotor oscillations due to system disturbances and rapid load changes.
    -Excitation: The exciter is of the brushless type with a rotating armature/rectifier assembled on the same shaft as the main generator rotating armature. The exciter field is controlled by the automatic voltage regulator (AVR). The rectifiers are of the silicon diode type in a full wave bridge arrangement. The rotating armature and stationary field of the exciter are insulated with Class F materials.
    -Cooling (air-cooled): The generator is air-cooled. A fan mounted on the generator shaft takes cooling air from the engine hall, through washable filters, and passes it through the generator.

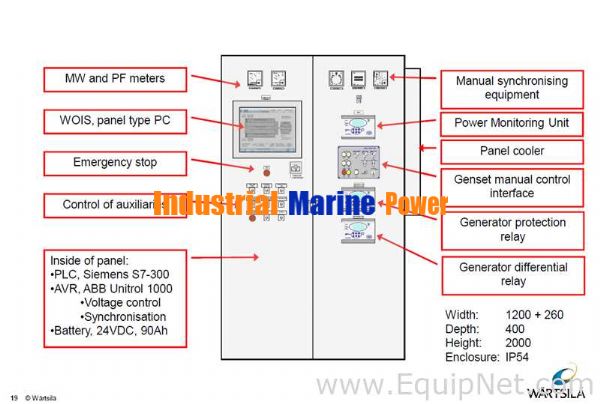

    -Automatic voltage regulator: The voltage regulator is a completely solid state type for control of generator voltage by means of controlling the exciter field. The regulator controls the generator exciter field as required to maintain a constant and stable generator output voltage. (The AVR is installed in the generating set control panel).
    Voltage regulation accuracy ? 0.5 %
    - within power range 0 – 100 %
    - within speed range 95 – 105 %
    Voltage setting range 90 – 110 %

  • Pictures are representative of as it is still boxed.




Specifications:​


Manufacturer Name: Wartsila

Year: 2018

Model: 20V34SG x (2)

Voltage: 13800 VOLTS

Current: 9400 KW x2- Total output 18,800 KW or 18.8MW

Recommended Packaging Form: CUSTOM PALLET
