butterfly valve

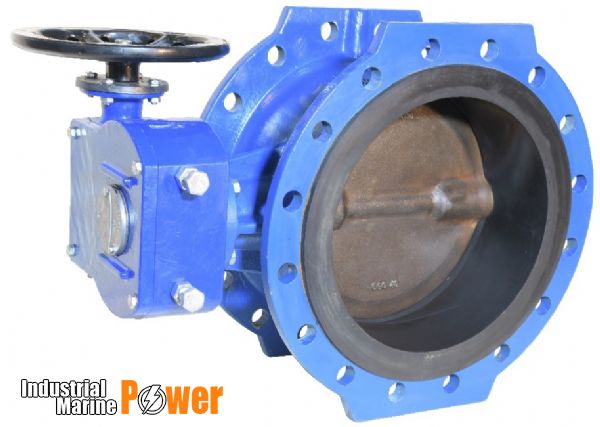

langed Butterfly Valves-Rubber-Lined Short Pattern (Centric Disk)

DN 250-1400 PN 10/16

• Flange drilling according to: ISO 7005-2, DIN EN 1092-2, ASME B16.5 & B16.47

• Face to face dimension according to: DIN EN 558-Series13 (DIN 3202-F16)

• Final inspection and test according to: ISO 5208, DIN EN 12266, API 598

• Coating: Epoxy Coating or polyurethane Coating

• Available Material:

- Body: EN GJS 400-15 Rubber Lined, EN GJS 500-7 Rubber Lined,

    ASTM A216-WCB Rubber Lined

- Disk: EN GJS 400-15, CF8, CF8M, ASTM B148 (C95800)

- Shaft: AISI 420, AISI304, AISI 316, Monel, Duplex

- Sealing: EPDM, NBR, Silicon, Viton
