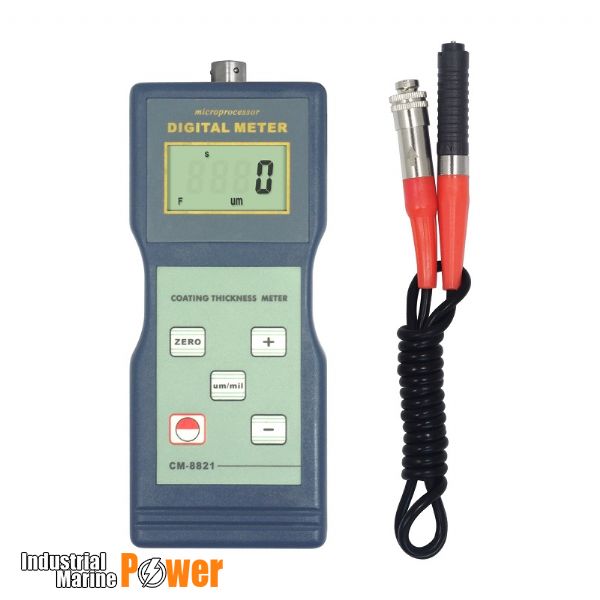

Coating Thickness Gauge CM-8821

1.Spec:

The F probes measure the thickness of non-magnetic materials on magnetic materials.

2.Features:

Measuring Principle: magnetic induction (F).

Two measurement mode: Single and Continuous?Notice?Continuous mode is convenient to measure the coating thickness of curved objects and tiny objects.?

Metric/imperial system selectable.

Manual or automatic shut down.

Automatic memory of calibration value,and automatic recognize the substrate.

Operation process have buzzing reminder,while no buzzing in continuous mode.

3.Specifications:

Principle: F Magnetic Induction

Range: 0~1000µm/0~40mil

Resolution: 0.1µm/1µm

Accuracy: ±1~3%n or ±2.5µm

Min. Radius Workpiece: F Type:convex 1.5mm/concave 25mm

                                      NF Type:convex 3mm/concave 50mm

Min. Measuring Area: 6mm

Min. Sample Thickness: 0.3mm

Metric/Imperial: Convertible

Battery Indicator: Low Battery Indicator

Automatic Power Off: ?

Operating Conditions: Temperature: 0~50ºC; Humidity: <80%RH

Power Supply: 4x1.5V AA (UM-3)Battery

Dimensions: 161x69x32mm

Weight: 210g(Not Including Batteries)

Standard Accessories: Main Unit, Probe (F Type), Calibration Base (F), Calibration Foils (1 set, 5 pieces), Carrying Case (B04), Operation Manual
