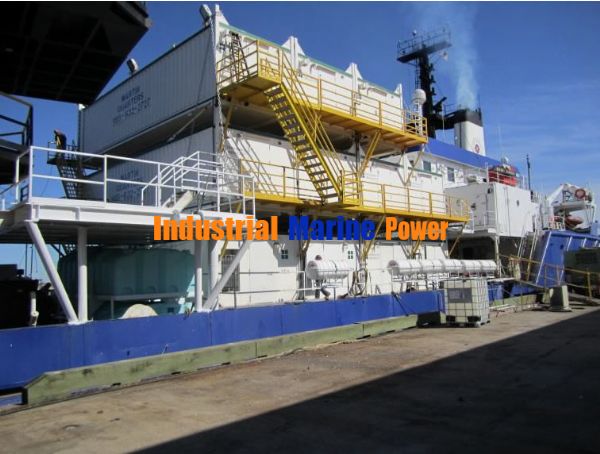

DSV with sat sys for RESELL as and where is basis

Subject: DSV with sat sys for RESELL as and where is basis


Date: 6.1.2019 03:26:20

Details: Reviews 0

Dear Buyer,

We can offer the attached vessel that is in the GOM and belongs to a friend. They had a modular SATsystem on board many times. The extra accom modul is not included. We could try to have owners install a SatSystem for you as part of the deal. Could stay within $10 mil budget. Operators are very experienced and have a fleet of such DSVs.

Only genuine buyers kindly contact for further details.

MAIN PARTICULARS
Class Lloyd’s DPII, RS DPII
Length 270 ft. / 82.3 m.
Breadth 58 ft. / 17.7 m.
Depth 15 ft. / 4.5 m
Main Engines (2) V12 Polar SF112VSF
Shaft Horsepower 4,620 BHP
Propellers (2) 63X3, 4 Blade CP propellers (outboard turning.)
Hotel Generator CAT C18 - 425 kW
Emergency Generator CAT 3306 - 120 kW
Bow Thruster (2) Tees White Gill Azimuth Thrusters, 50VST, Electrically Driven - 1100 HP
Stern Thruster (2) Schottel Tunnel Thrusters, STK550, Electrically Driven – 1000 HP
Shore Connection 3ph., 480V, 200Amp
Total POB 148
Gross Tonnage 2,643 GRT
Hospital 1
Construction All welded steel built to Lloyd’s class, ice strengthened
Range 14,000 nautical mile
Helicopter Pad 66’ x 66’ CAP-437 Super Puma 332L2
DYNAMIC POSITIONING SYSTEM
DP Propulsion Generators (3) CAT 3516 1500 kW
Total DP KW 7965 / 9465 kW
Total Propulsion and DP Horsepower 12,000 BHP
DP2 Control System Kongsberg K-Pos DP-21 dual redundant dynamic position system
CAPACITY
Fuel Oil 227.69-M/T (620 w/5D.B.) 102tonnes/hr@65mtr. Head
Drill / Ballast 2332.90-M/T. 100Tonnes/hr.@6.14 kg/cm2-Drill Water / 250Tonnes/hr.@1.8 kg/cm2-Ballast Water
Thruster Lube 4.54-M/T
Cargo Tanks 762.6-M/T
Potable Water 206.76-M/T (350 W/mud Tanks) 120 Tonnes/hr @ 65mtr. Head
Deck Cargo Capacity 2,000 Tons - (7 tonnes/m2)
Clear Deck Space 8,965 ft2
EQUIPMENT
Clear Deck Space 5,053 ft2
Crane - 150t 95 ft hydraulic 150t with 1,500 ft of 3 in cable single part lift.
Crane - 15t HP4015k Hydra Pro Knuckle Boom
Moon Pool - 12’ X 12’ Clear
Deck Strength 7 Tons per ft2
Capstans (2) 3tons @ 0-36 m/min
Windlass 1ea. R.J. Shepherd dual range. 40mm. cable. 17 shots per side
Windlass Anchors 2 x high holding power stockless bow anchors
ROV Optional
Tween deck Shop and storage area with thruster room access
NAVIGATION & COMMUNICATION
Radar (2) Furuno FAR2127 with aft station display
GMDSS (1) Duplex terminal Furuno system
Phone System Panasonic with built in PA
SAT Phone - Tied Into Phone System Thrane Sailor sc4000 Iridium / Thrane Mini M / KVH Tracphone
TV System KVH M9 SAT TV System
Radio (2) Furuno FM-3000 VHF Radio with DSC / (2) Furuno, model FM-8500 with DSC
Chart Navigation Computer Running Nobeltec Admiral Pro to 19” plasma monitor
GPS Furuno, GP-32 Navigator
Depth Sounder Furuno, model FE-700
AIS Furuno, FA-100
Magnetic Compass Binnacle Mounted
Autopilot Sperry Nav-pilot 4000
DPS Gyro Compasses (4) Sperry Marine, model Navagat XMK1
Gyro Repeaters Four (4) Anschutz
Watch Alarm Simrad, model Watch Clock 596
Bridge Computer Triton custom
NavTex JRC, model NCR-300
SSB Furuno, model FS-1562
