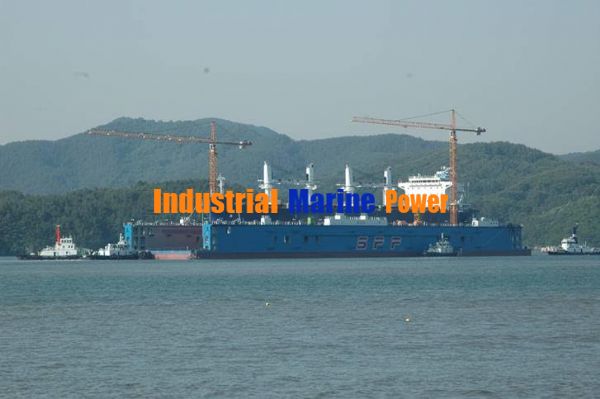

Floating Dock build 2009 KOREA size 15,000TLC FOR SALE

EXCLUSIVELY FROM VERY CLOSE FRIEND SELLERS, WE MAY DEVELOP VERY UNIQUE 2009 KOREA 15,000TLC FLOATING DOCK WITH 30T GANTRY CRANE FOR SALE;-

SPP NO.2

=

STEEL PONTOON TYPE FLOATING DOCK

BUILT 2009 KOREA

CLASS KR

LIFTING CAPACITY 15,000

Ø LENGTH OVER ALL 230.0M

Ø BREADTH OF TOWERS AT PONTOON DECK 45.0M

Ø BREADTH(MLD) OUTSIDE TOWER WALLS 39.0M

Ø BREADTH OF TOWERS AT PONTOON DECK 3.00M

Ø DEPTH OF PONTOON AT CENTER LINE 6.2M

Ø DEPTH OF PONTOON AT SIDE LINE 6.1M

Ø HEIGHT OF TOP DECK 16.2M

Ø MAX. SUBMERGE DRAFT 13.2M

Ø MAX. LIFTING CAPACITY 15,000 TONS

Ø BALLAST PUMP 2,500㎥/HR x 8 SETS x 15M

Ø STRIPPING & G/S PUMP 250㎥/HR x 3 SETS x 50M

Ø BILGE PUMP 4㎥/HR x 3 SETS

Ø FULL OIL TRANSFER PUMP 2㎥/HR x 1 SET x 3 KG/C㎥

Ø WASTE OIL PUMP 3㎥/HR x 1 SET x 3 KG/C㎥

Ø MOORING WINCH 15/30 TONS x 16/8 M/MIN x 6 SETS

Ø ANCHOR WINDLASS 20/40 TONS x 24/12 M/MIN x 2 SETS

2 x MAIN GENERATORS

MODEL KTA50DMGA

MAKER STX-CUMMINS

TYPE 4 cycle, 60° Vee, water cooled director

Injection, Turbocharged and After cooled

power 1,635 BHP x 1800 RPM x 1,000 KW

diesel oil 291 L/HR (at 100% Load)

EMERGENCY GENERATORS

MODEL 4B3.9DMGA

MAKER STX-CUMMINS

60 BHP x 1800 RPM x 30 KW

Diesel oil 12.76 L/HR (at 100% Load)

Ø DANFORTH ANCHOR 13,600 kg x 2

Ø ANCHOR CHAIN Ф 66(GR.3) x 412.5M x 2

Ø MOORING WINCH 15/30TON x 16/8M/MIN. x 6

Ø ANCHOR WINDLASS 20/40TON x 24/12M/MIN. x 2

Ø CHAIN CONTROLLER, FOR Ф 66 CHAIN, 2

Ø HAWSE PIPE & DECK PIECE 2

n Gantry Crane

Ø One set of Gantry crane on top deck 30t

Ø Electric motor 440V 60HZ

(ALL DETAILS ABOUT WOG)

INSPECTABLE ANYTIME IN KOREA WHERE DELIVERABLE FAIRLY PROMPTLY.

CAN GUIDE VERY CLOSELY.
