| Parameter | Detail |
|---|---|
| Number of Generators | 2 Units |
| Capacity per Generator | 6 MW |
| Total Installed Capacity | 12 MW |
| Year of Commissioning | 2010 |

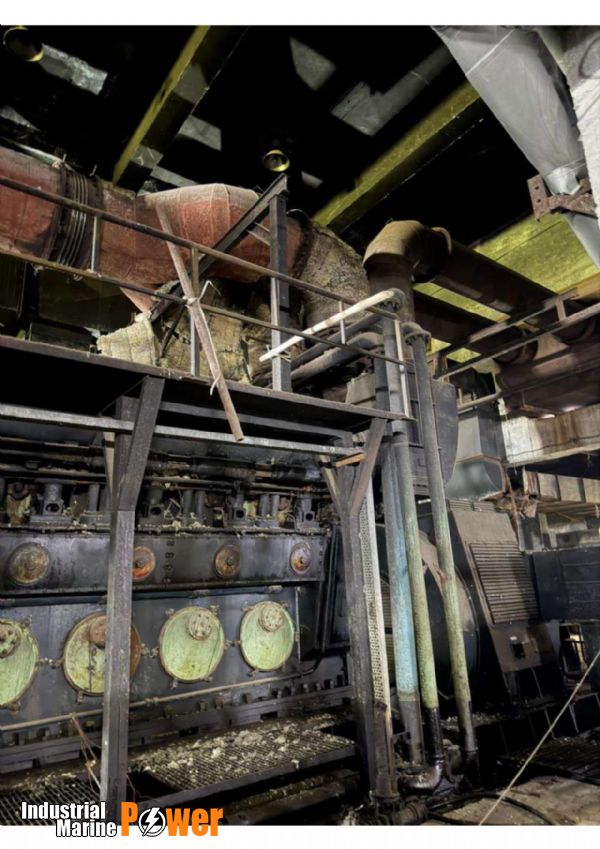

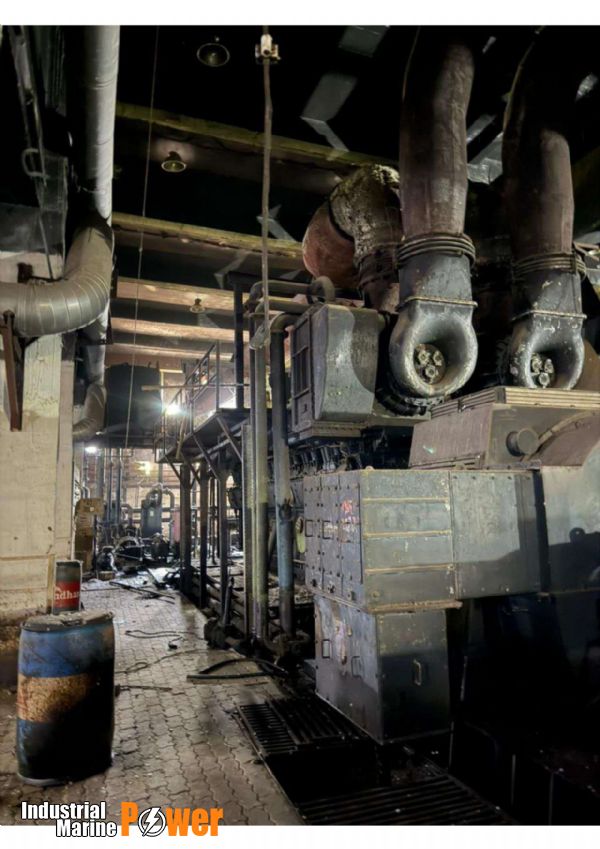

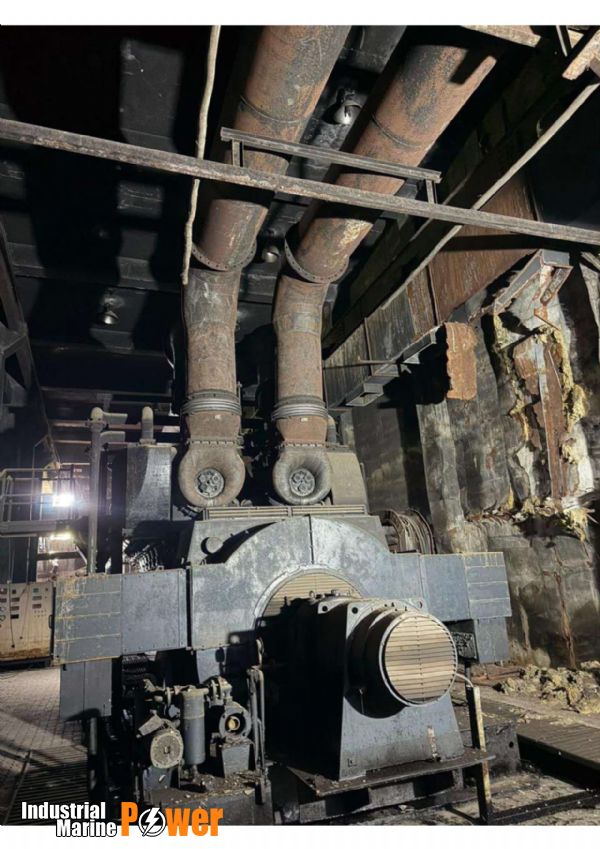

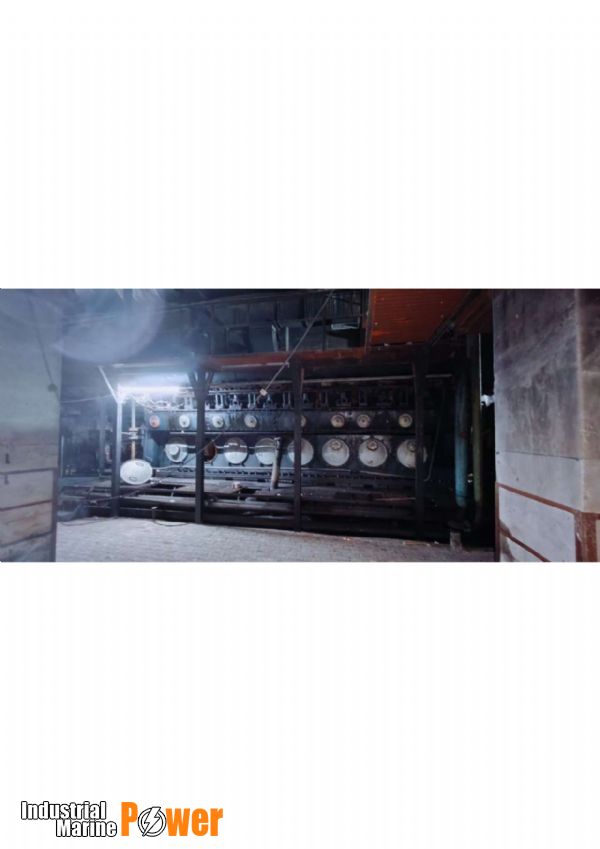

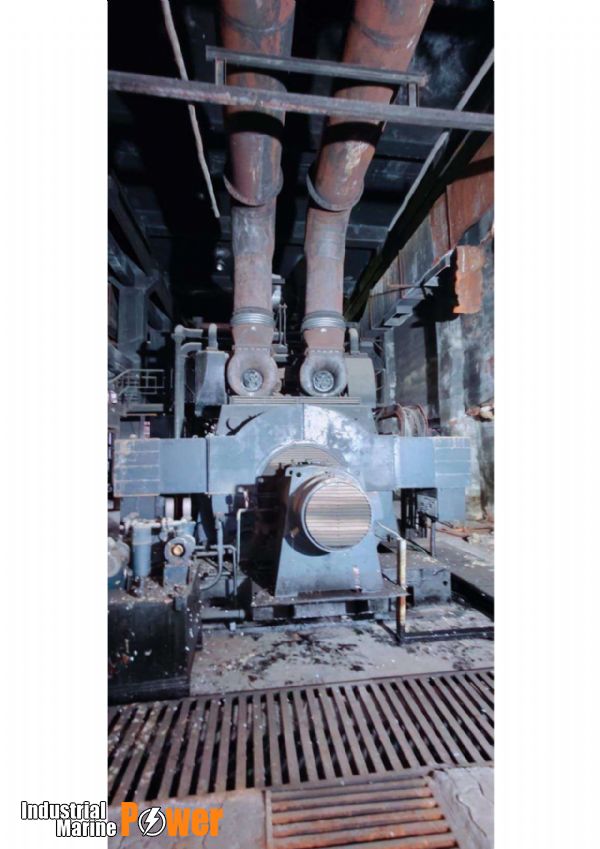

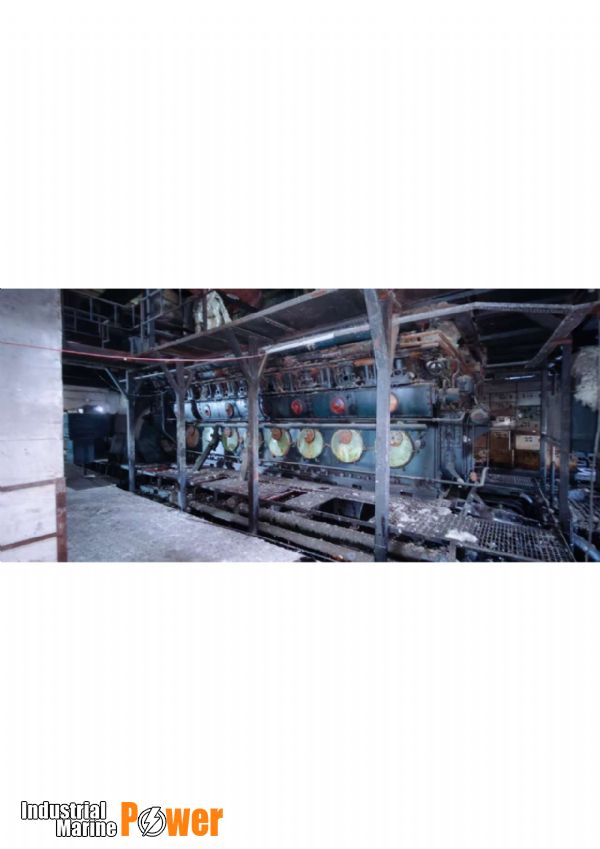

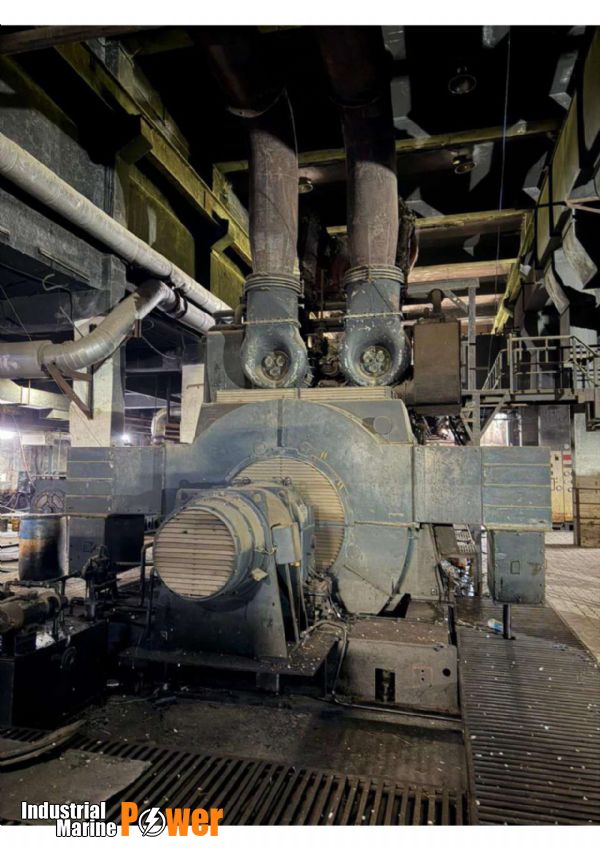

| Manufacturer / Engine Make | SEMT Pielstick |
| Model | PC2 V400 |
| Engine Type | V-Shape |
| Cylinders | 16 |
| Fuel Type | Heavy Fuel Oil / Light Diesel Oil |
| Specific Fuel Consumption | 250 g/kWh |
| Running Hours After Overhaul | 6,800 Hours |
| Parameter | Detail |
|---|---|

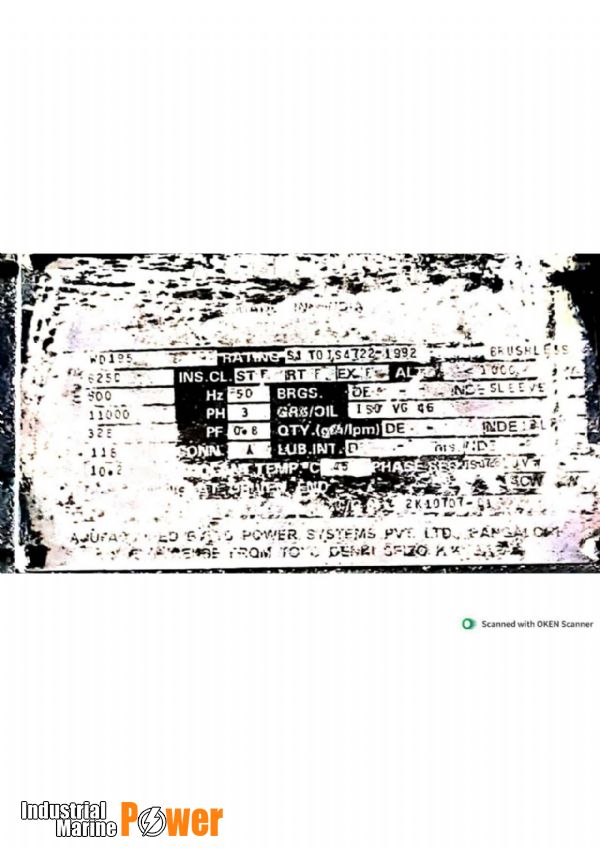

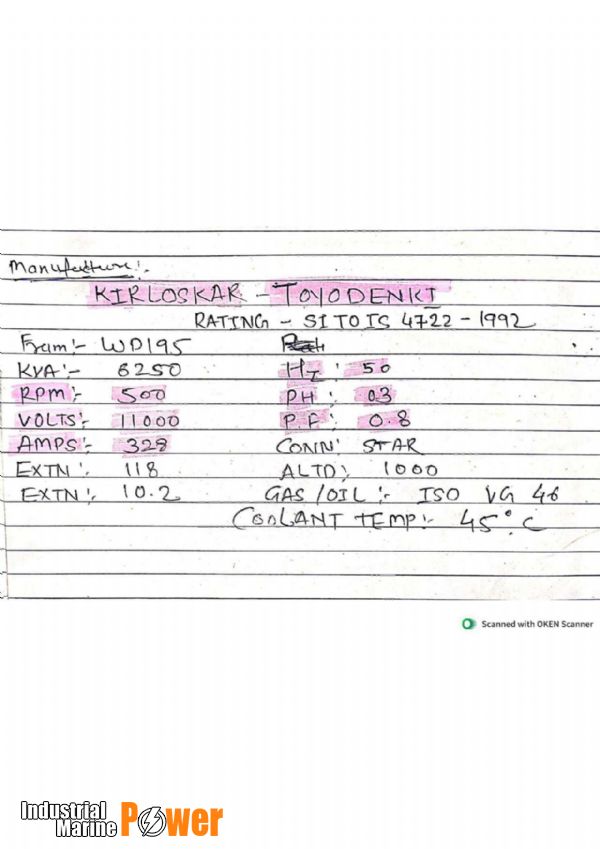

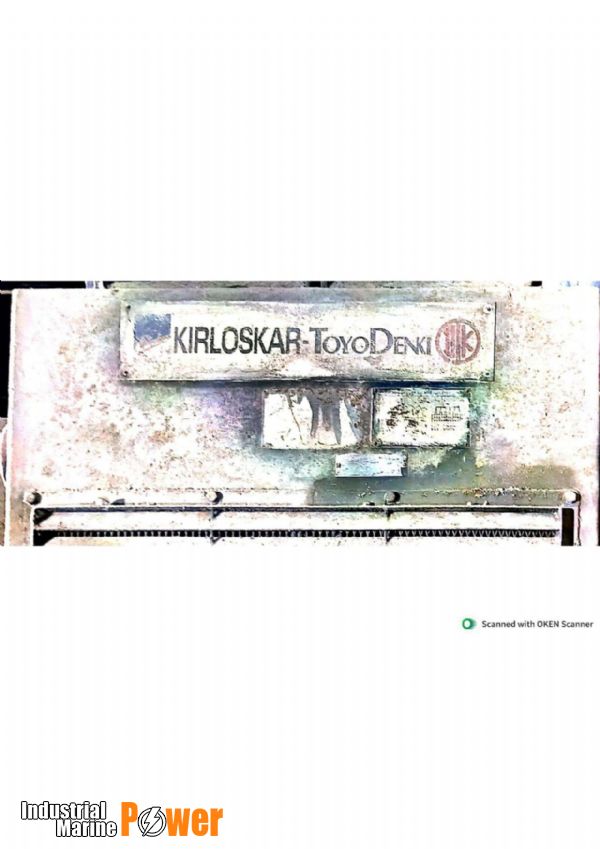

| Alternator Make | Kirloskar, Pune |
| Alternator Model | Double Bearing Brushless |
| Rated Output | 6,125 kVA |
| Voltage | 11 kV |
| Frequency | 50 Hz |
| Synchronization Capability | Possible |
| Condition | Excellent |

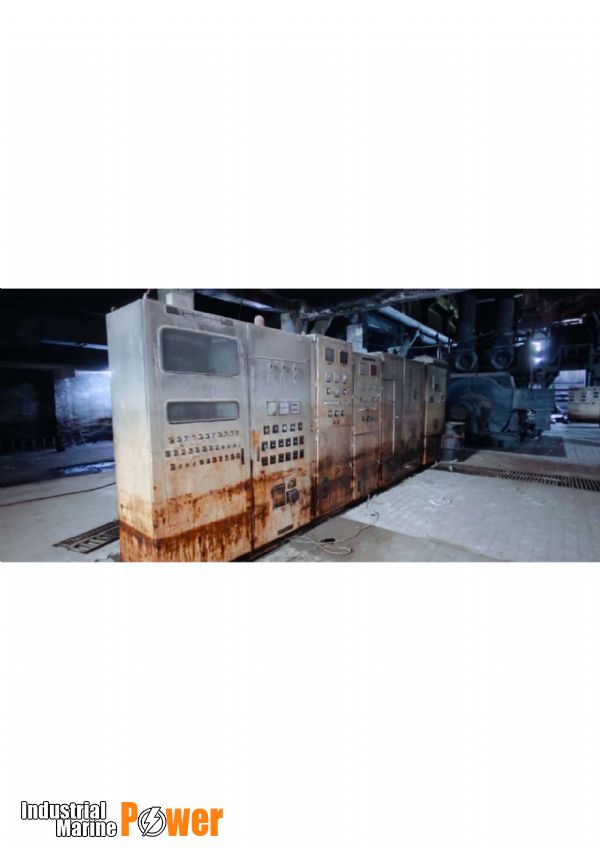

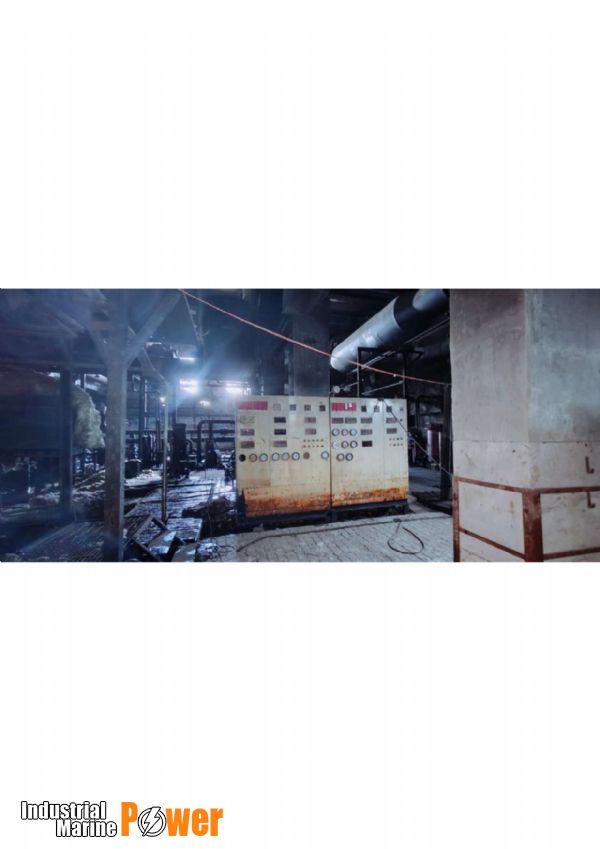

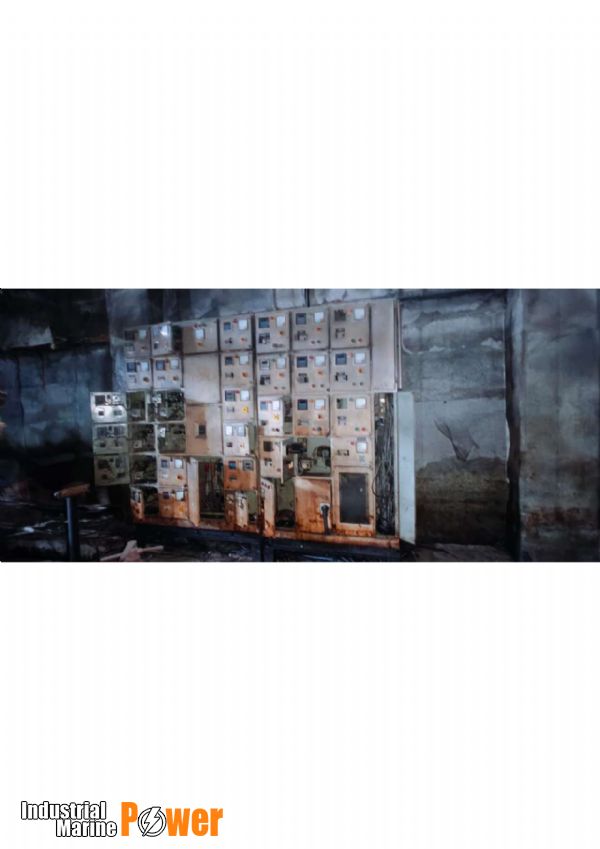

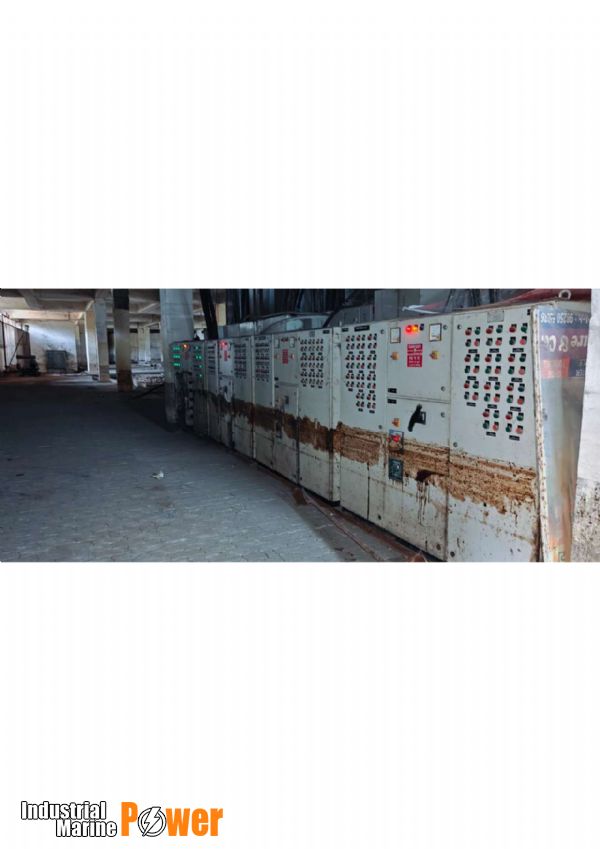

| Control Panel | Imported, Supplied with Engine |
| Export Power Capability | Capable |
| System | Detail |
|---|---|

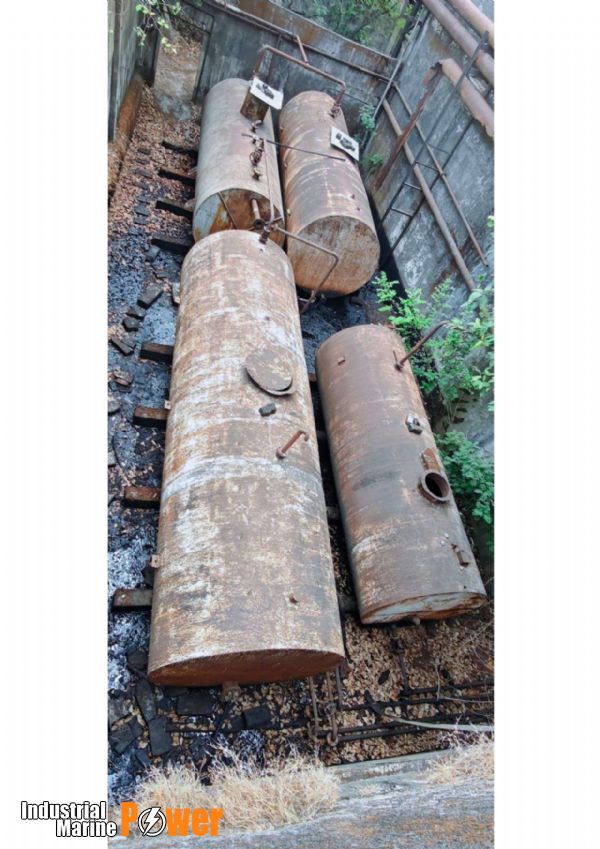

| Fuel Storage Capacity | 40 MT |
| Fuel Viscosity | 100 CST at 100°F |

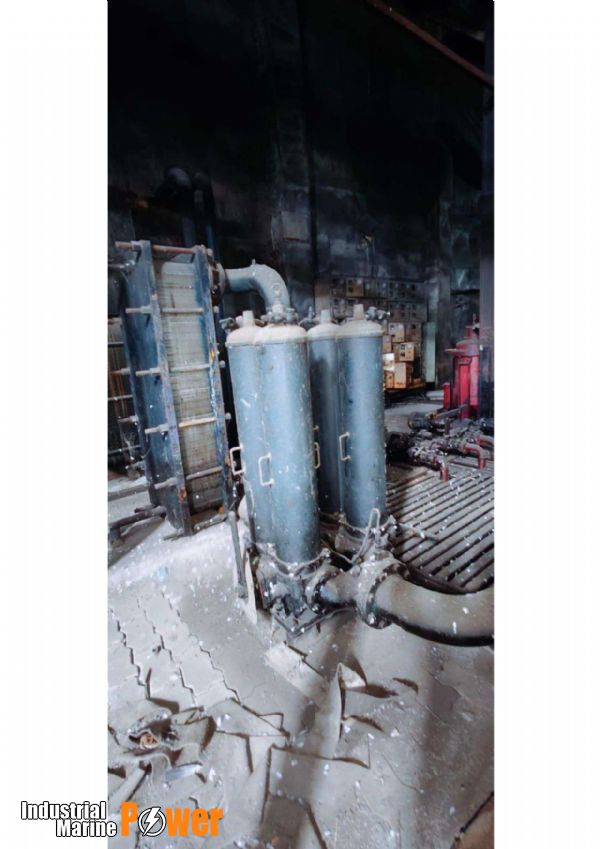

| Cooling Type | Cooling Tower / Heat Exchanger |
| Cooling Water Capacity | 6 MT |
| Lube Oil Consumption | 2 Litres per Hour |
| Oil Status | New Oil |
| Stack Height (Exhaust) | 30 Metres |

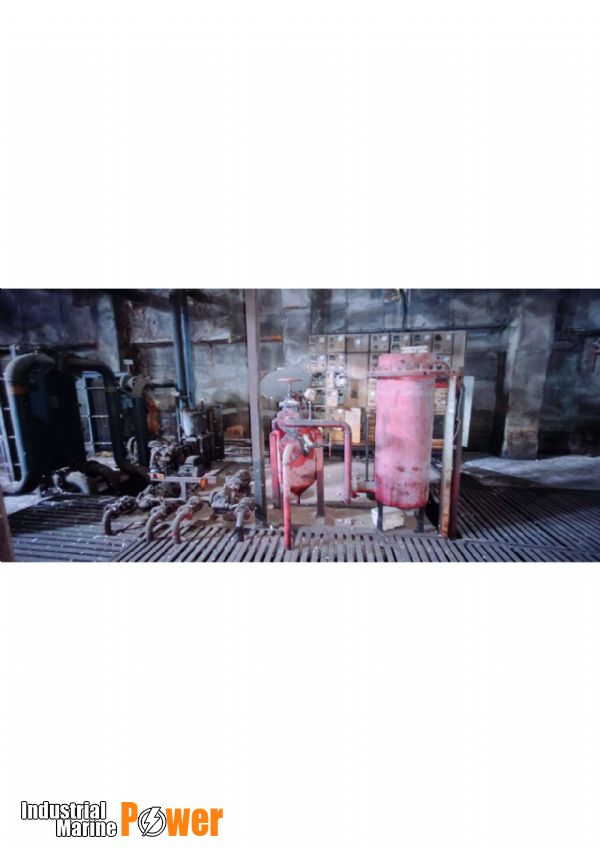

| Air Compressor System | Available |
| DG Starting System | High Pressure Air |

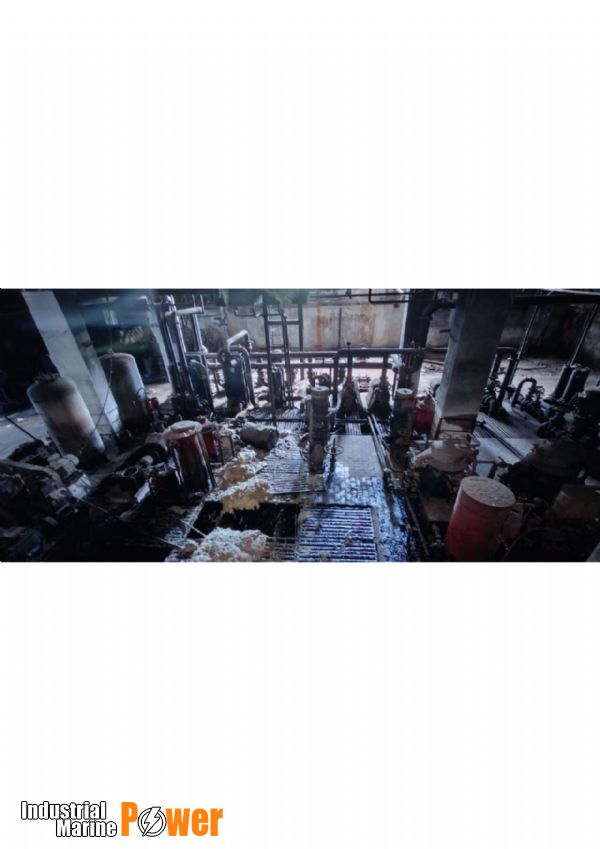

| Pumps & Motors | Available |
| Parameter | Detail |
|---|---|
| OEM Manuals | Possible |
| SLD / GA Drawings | Photographs Available |
| Sale Basis | As-Is-Where-Is |
| Inspection | Available on Request |
