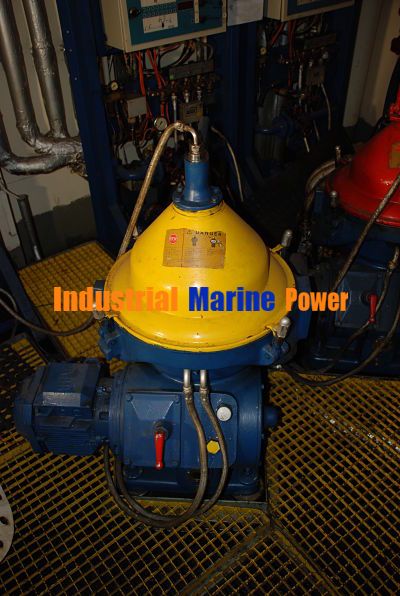

HFO PURIFICATIONS FOPX 605

ALFA LAVAL. Type.: FOPX 605 TFD-24. Manufacturing Serial N° / Year.: 4113567 / 2001.
Product No.: 881111-01-05. Machine top part.: 546226-01. Bowl.: 546224-04.
Machine bottom part.: 540224-10. Max. speed (bowl).: 7605 r/min. Speed motor shaft.: 1500 r/min. Frecuency.: 50 Hz. Recommended motor power.: 4 Kw.
Max. density of feed.: 1100 Kg/m3. Max. density of sediment.: 2019 Kg/m3.
Max. density of operating liquid.: 1000 Kg/m3. Process temperature min/max.: 0-100°C.
MOTOR ELECTRICO.- ABB Motors. 3≈ Motor M2AA 112 M-4. Cl.: F. IP55.
3GAA112001-EDBPM. N°.: 04711 16/10. 380 v. Triangle. 50 Hz. 1435 rpm. 4,0 Kw. 8,9 amp.
Cos phi.: 0,8. 6206-2Z-C3. 6205-2Z-C3. Weight.: 27 Kgs.
BOMBA ALIMENTACION.-
IMO AB. Stockholm. Sweden. Type designation.: ACP 025N1.NVBP. Serial No.: 502624.
Alfa Laval No.: 1762162-01.
