MAN 12VP185TCM UNUSED Diesel ENGINE, 2072KW , 1937 RPM. USE FOR GOVERNMENT & NAVY SHIP HIGH SPEED

Subject: MAN 12VP185TCM UNUSED Diesel ENGINE, 2072KW , 1937 RPM. USE FOR GOVERNMENT & NAVY SHIP HIGH SPEED


Date: 6/16/2022 9:51:58 AM

Details: Reviews 0

Our company name: Qinhuangdao beifang marine parts & machinery import&export Co.,ltd We supply marine diesel engine and diesel generator set and spares for 30 years by now . Diesel engine model

MAN 12VP185TCM

No. of Cylinders

12

Bore

185mm

Stroke

196mm

Compression Ratio

13.1:1

Idling Speed (Basic Engine)

600 rev/min

Directional Rotation

Anti-clockwise looking on flywheel

Configuration

90° Vee

Rated power

2720 kW

Rated speed

1937rpm

Size

320017002300mm

Dry weight

7.8 ton

IMO NOx Emissions Regulations

IMO Marpol Annex VI Tier II

Fuel consumption

220g/kw.h +5%



Key Data

Weight



12VP185?

18VP185

7.46 tonnes (dry)

10.58 tonnes (dry)

Power

(@ 1950 rpm)?

12VP185

18VP185

up to 2610 kWb

up to 4000 kWb

Dimensions

(H/L/W)

12VP185

18VP185

2175 / 2971 / 1660mm

2178 / 3798 / 1450mm

Basic Parameters

Cycle:

4 stroke

Bore and Stroke:

185 x 196mm

Mean Piston Speed:

11·8 m/s @ 1,800 rpm

Standard Rotation:

Anti-clockwise looking on the drive-end.

Aspiration:

Two stage turbocharging, intercooled and aftercooled.

Fuel Spec:

BS2869 Class A2 or equivalent.

Standard Equipment (for all applications)

Flywheel

Engine mounted turbochargers

Engine mounted water cooled intercoolers and aftercooler

Engine driven primary and secondary coolant pumps

Engine driven lubricating oil pump

Heat exchanger/oil cooler

Lubricating oil pressure-relief valve

Lubricating oil filters

Crankcase explosion doors

Fuel oil filter

Overspeed trip

Electronic speed governor

Thermostatic valves for jacket water and lubricating oil systems

Standard paint finish

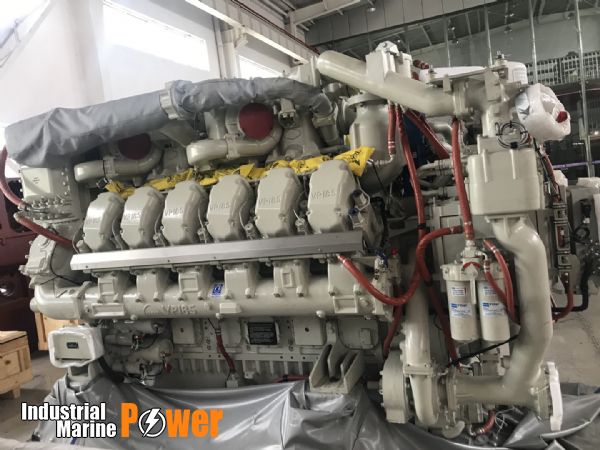

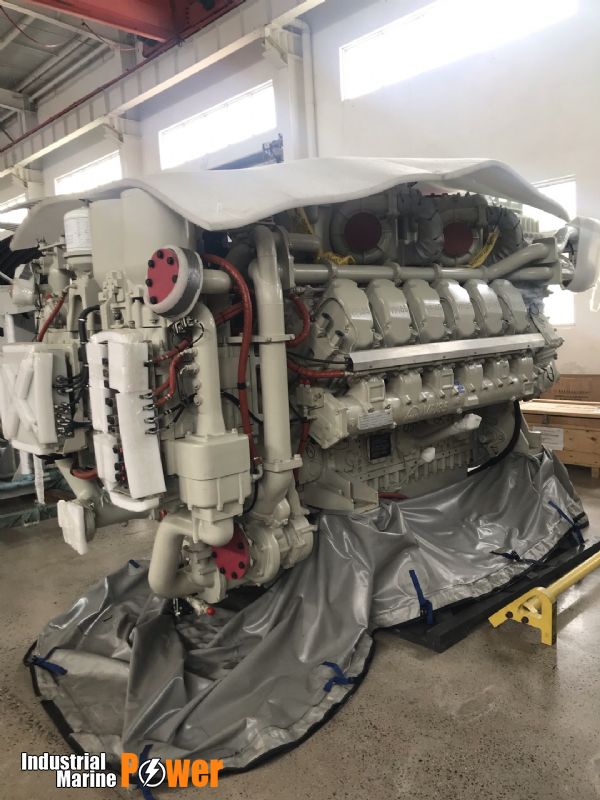

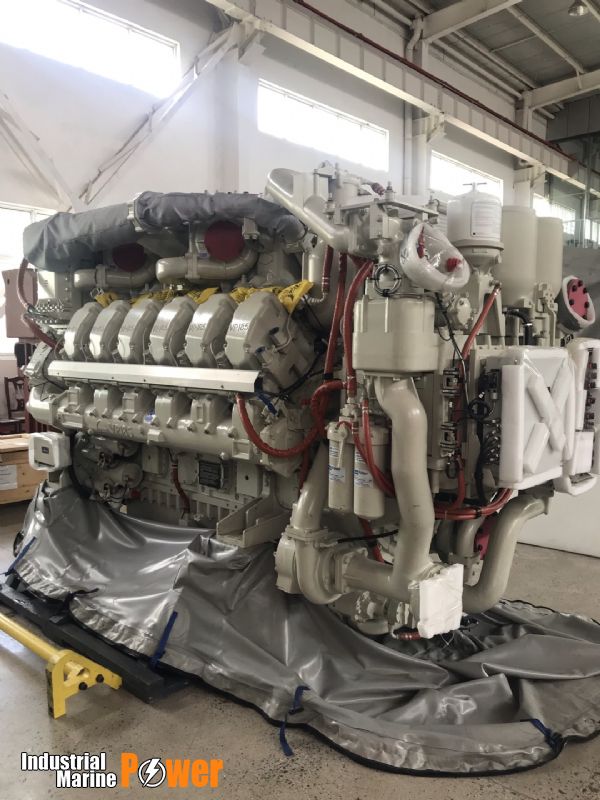

12VP185 TCM high speed propulsion engine.

Originally built for Taiwan Coastguard in 2017, the engines were never installed and were returned to UK. They have since been preserved at the MAN factory in Colchester (UK).

Now, we have three type diesel generator set in stock , they are : STX-MAN 18V 32/40 8 sets MAN 6L 27/38 4 sets MAN 9L 21/31 5 sets

All of them are new machines. in good condition , 0 hour run, system is complete

Further information please feel free to contact with us

To see the contact details please Login or Register
Contact Name:dapeng.lv
Company Name:Qinhuangdao Beifang Marine
Mobile Phone:86 18713559625
Phone:+86 18713559625
Fax:
Country:China
E-Mail:gwbjcg@bfmp.net
Web:www.bfmp.net
