Subject: MAN Generating set MAN 18V 28/32S, 3850kW; HFO Power Plant


Date: 11/17/2022 6:11:42 AM

Details: Reviews 0

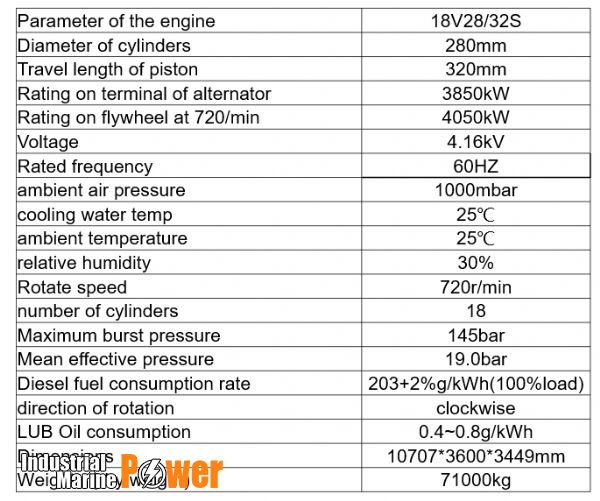

MAN Generating set Type: 18V28/32S-,

four-stroke, water-cooled with oil-cooled modular cast iron pistons exchangeable cylinder liners, turbo-charged charged air cooling.

Maximum continuous rating at 720r pm

Output on flywheel 4050 kW

Output on the alternator terminals... ....3850kW

Frequency . . . . . . .60Hz

Cos phi . . . . . . . . . . 0.8

Alternator voltage……….. 4160 volt

Derating because of ambient conditions Derating ……….0 %

The output is stated at:

Height at above sea level . . . . . . 1000mbar

Cooling water temperature inlet charge air cooler...…25 deg.

C Ambient temperature ……..25 deg.

C Relative humidity. . . . . . . . . . . . .30%

Fuel: Type of fuel…………………HFO

The plant is designed to operate on Heavy Fuel Oil (HFO) at maximum 650 cSt at 50 'C According to MAN Diesel standard for HFO, Earthquake code Richter scale up to . . . . . . . . . . . . . . .7.0

Basic Diesel Engine:

Fuel Oil System

Lubricating Oil System

Cooling Water System

Compressed Air System

Combustion Air System

Exhaust Gas System

Speed Control System

Safety, Control and Monitoring System



Further information please kindly to contact us
