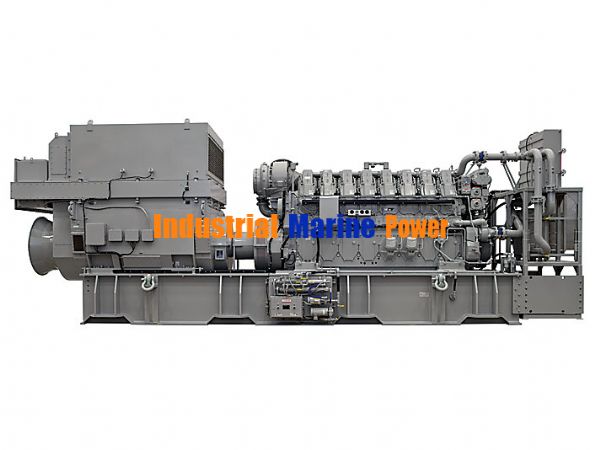

MARINE ENGINE CAT C280-8 UNUSED

GENERATOR SET SPECIFICATIONS

Minimum Rating 2350 ekW (2938 kVA)
Maximum Rating 2420 ekW (3025 kVA)
Frequency 60 Hz
Speed 900 rpm (60 hz)
GENERATOR SET CONFIGURATIONS

Emissions/Fuel Strategy EPA Tier 2, IMO II
ENGINE SPECIFICATIONS

Engine Model In-line 8, 4-Stroke-Cycle Diesel
Aspiration Turbocharged-Aftercooled
Bore 11.0in
Stroke 11.8in
Displacement 9031.0in3
Governor Type Electronic
Fuel System EUI
Compression Ratio 60 Hz 13:1
GENERATOR SET DIMENSIONS

Length 316.5in
Width 77.2in
Height 155.0in
Weight (Estimated) 25000.0lb
