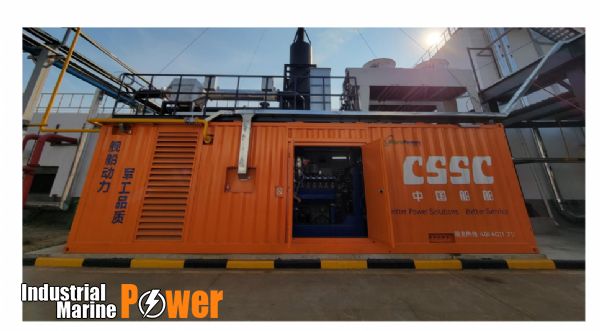

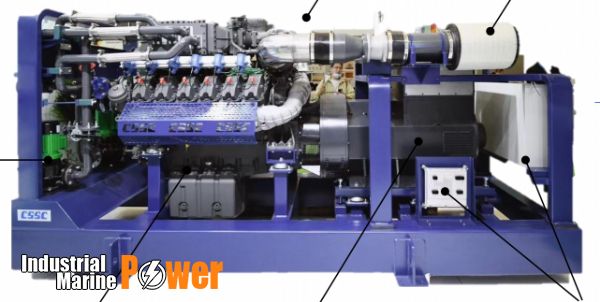

Qiyao Power 20V1000Gs gas unit 1000kw gas gen set

We are working as official distributor of marine engines for GE?Asia area?, also as authorized agent for QIYAO engines ?As you know, we had finished many shipbuilding projects with Russian and Southeast Asia customers during the years, especially for Navy shipbuilding projects, the mainly products are for package supplying of ship propulsion system, including Main engines, Gear box and Propellers as well.

High efficiency: power generation efficiency 42.3%

Reliable: overhaul period reaches 64,000hours

Stable: electronically controlled air-fuel ratio,zero-pressure air intake, ultra-lean

Combustion, pre-combustion chamber spark ignition and other advanced technologies

Low emission: ?500mg

Low cost: compared with imported brands, it effectively reduces the purchase cost and

maintenance cost. l Low maintenance cost

Output electrical power kW 500

Output thermal power kW 547

Electrical efficiency % >40

total efficiency % >80

engine model Liebherr G9512 BG

Bore/stroke mm 130/157

Generator model CSSC Electric 1FC2 355N

Rated voltage/frequency V/Hz 400/50

Control System Independently developed by SMDERI 711

Average effective pressure (@100%Load) bar 16.5

Lubricating oil consumption g/kWh <0.3

Design overhaul cycle H 64,000

Ambient temperature without power drop ? 40
