Subject: REF762/2000/16720CBM/6.50MILLION


Date: 15.12.2016 03:56:47

Details: Reviews 0

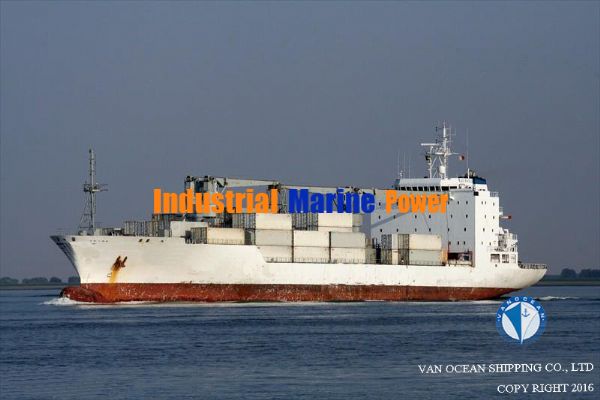

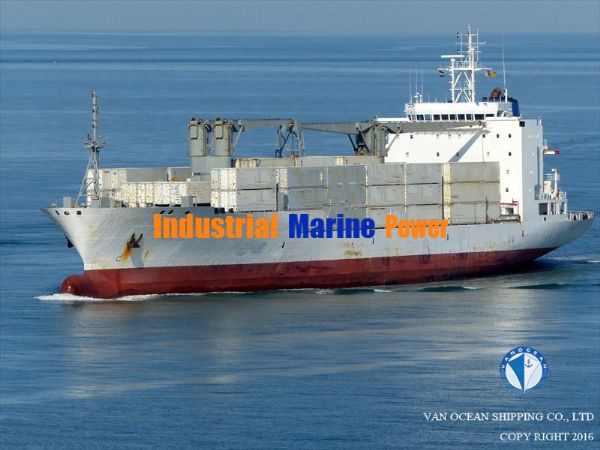

VESSEL NAME REF762
TYPE REEFER CARRIER
DEEP FREEZING OR NOT NO
FLAG MARSHALL ISLANDS
PORT OF REGISTRY MAJURO
BUILT YEAR 2000
BUILT PLACE SHIPYARD "SPLIT"-CROATIA
CLASSIFICATION BV
CLASS NOTATION I, HULL,MACH,CONTAINER SHIP-REFRIGERATED CARGO SHIP, AUT-UMS(SS),SYS-NEQ-1(SS),REF-CARGO(CS), UNRESTRICTED NAVIGATION
SS
DD
LOA (M) 155.27
LBP (M) 146.00
BEAM (M) 23.39
DEPTH (M) 13.20
SUMMER DRAFT (M) 9.51
WINTER DRAFT (M)
TROPICAL DRAFT (M)
GT (MT) 11443.00
PANAMA GT (MT)
SUEZ GT (MT) 12304.25
NT (MT) 6336.00
PANAMA NT (MT) 9880.00
SUEZ NT (MT) 9166.25
SUMMER DWT (MT) 12913.00
WINTER DWT (MT)
TROPICAL DWT (MT)
LDT (MT) 6920.00
DISPLACEMENT (MT) 19832.50
GEAR(S) TWO KRUPP GHL 23 GEMINI TWIN DECK CRANES,ELECTRO-HYDRAULIC TYPE ONE LOCATED BTW HATCH 3 AND 4,OTHER BTW 1 AND 2.
SWL-TWIN MODE 40MT,SINGLE MODE 20.3MT. OUTREACH 3-23M.
CRANES ARE SUITABLE FOR HANDLING CONTAINERS WITH SPREADER
M/E(S) 1 M A N-B&W 7L 60MC 2T, 7CYL, 123RPM
M/E POWER (KW) 13440.00
A/E(S) FOUR SETS TYPE "BRODOSPLIT-MAN B&W" FOUR STROKE, WATER COOLED DIESEL ENGINE TYPE 8L 23/30 HEIGHT CYLINDERS MCR 1280KW AT 900 RPM.
SPECIFICATION OF HFO380 CST AT 50 C-AS PER ISO STANDARD 8217:2010 OR ANY SUBSEQUENT AMENDMENTS THEREOF.
GENERATOR(S) 4 DIESEL GENERATORS, 1500KVA(1200KW),440V,60HZ, 1 EMERGENCY GENERATOR 135 KVA(108KW), 440 V, 60HZ
SHAFT GENERATOR(S)
PROPELLER(S) 1 SOLID SCREW PROPELLER LB10, 123RPM
COOLING SYSTEM (COMPRESSOR) THREE FACTORY ASSEMBLED BRINE CHILLER UNITS TYPE SABROE VSB 81E USING R22(CONVERTIBLE TO HFC 407C/404A) AS PRIMARY AND BRINE AS SECONDARY COOLING MEDIA. GUARANTEED COOLING DOWN PERIODS FOR BANANAS MAX.26 HOURS, FRUIT MAX.52HOURS, FROZEN COMMODITIES MAX.72 HOURS.
SPEED/CONSUMPTIONS 20.0 KTS, HFO 52.5MT/DAY
FUEL TYPE HFO
BUNKER CAPACITY (CBM) 1957
TANKS CAPACITY (CBM) MDO:108,LO:132,FW:146, WATER BALLAST:2396
NUMBER OF CARGO HOLDS 4
HATCH NUMBER 4
HATCH TYPE WEATHER DECK-WATER&TIGHT, HYDRAULICALLY OPERATED FOLDING TYPE
HATCH SIZE (M) 6.16 x 6.00, 12.82 x 8.00
HEIGHT OF HATCH COAMING (M)
COMPARTMENT(S) 16
DECK(S) 4
DECK HEIGHT (M)
CARGO CAPACITY (CBFT) 590227
CARGO CAPACITY (CBM) 16720
FLOOR SPACE CAPACITY (SQM) 6906.5
GRATING/DECK STRENGTH ALUMNIUM(HYDRO ALUMNIUM-NORMAY) GRATINGS 120MM HEIGHT DESIGNED FOR FORKLIFT (PNEUMATIC TYRES) LOAD OF 7000 KG PER SHAFT
TEMPERATURE ZONE(S) 8
TEMPERATURE (℃) -25/-15
TYPE OF VENT SYSTEM DUCTLESS AIR CIRCULATION
VENT (TIMES/HOUR) 90
AIR CHANGE (TIMES/HOUR) 2
PALLET(S)
CONTAINER CAPACITY ON DECK 120 FEU+20TEU OR 168 TEU+46FEU
IN HOLDS 36 FEU OR 72 TEU
TOTAL CONTAINER CAPACITY:156FEU+20TEU OR 240TEU+46FEU
PERMISSIBLE STACK WEIGHT IN HOLDS:120MT-FEU,96MT-TEU, ONDECK 90MT-FEU, 72MT TEU
REEFER PLUG(S) 120
SIDE DOOR(S)
FENDER(S)
ANCHOR CHAIN(S)
USDA CERTIFICATE YES
INSURANCE
CREW
ACCOMMODATION
INSPECTION
DELIVERY
PRICE USD 6.50 MILLION
REMARK(S)
To see the contact details please Login or Register
Contact Name:VITO
Company Name:BEIJING VANOCEAN CO.,LTD
Mobile Phone:13910872352
Phone:
Fax:
Country:China
E-Mail:REEFER-SNP@VANOCEAN.COM
Web:
