We have the following available for sale:

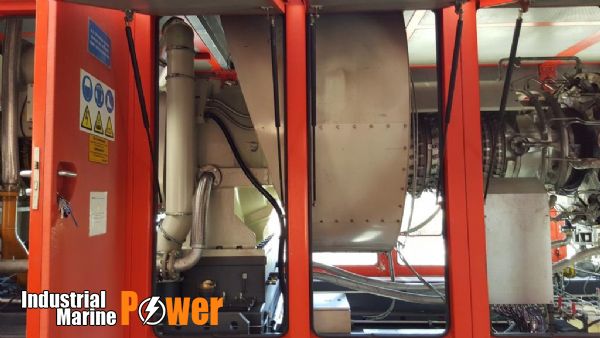

1.2 Turbine engine

Manufacturer : Solar Turbines INC, San Diego USA
Model : Titan 130 with Solonox combustion
Manufactured by Turbomach
Manufactured in 2005
Operating hours : about 15.500 (whole plant), 150 starts
Was operated until 2007, after that stanby.
Condition : fully serviced by Turbomach and ready for start.
Capacity : 11.840 kW
Speed : 11.215 RPM continual
Fuel/gas consumption : around 3.700Nm³/h (cal.value 10.4 kWh/m³)
Burners : 14
Start system : electro.hydraulic, 110 kW
Outlet temperature : 486°C
Exhaust gas volume : 131.000m³/h
Dimensions : longitudinal- and transverse-force bases
Turbine : 9m x 2,2m x 2,8m = 33 tons
Strainer : 4m x 2,9m x 3,8m =4,8 tons
Insulating dome 9m x 2,2m x 3,25m =7 tons

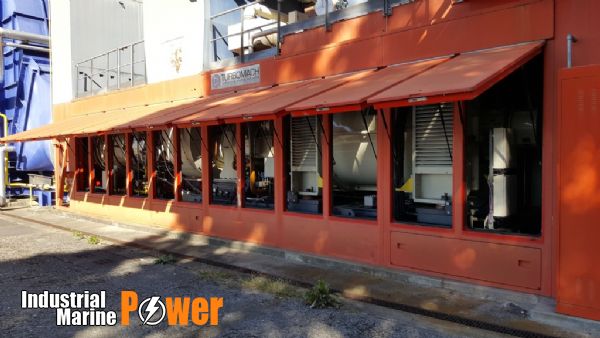

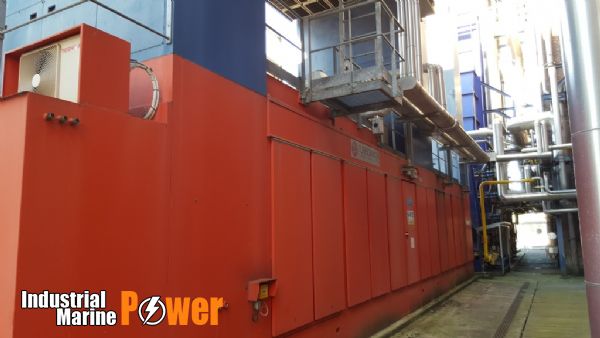

Mounting : On steel skid (with acoustic enclosure)

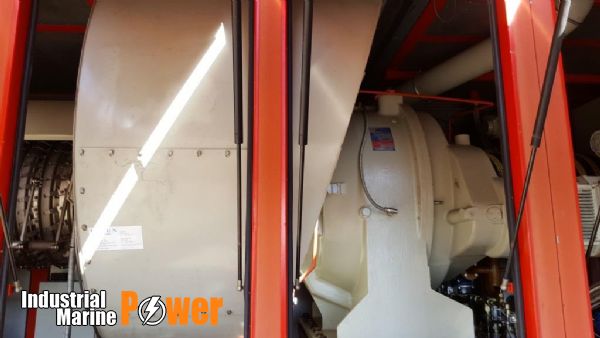

1.2 . Reduction Gearbox

Type : Solar Epicyclic Reduction Gearbox
Output rpm : 1500
Year Manufactured : 2005

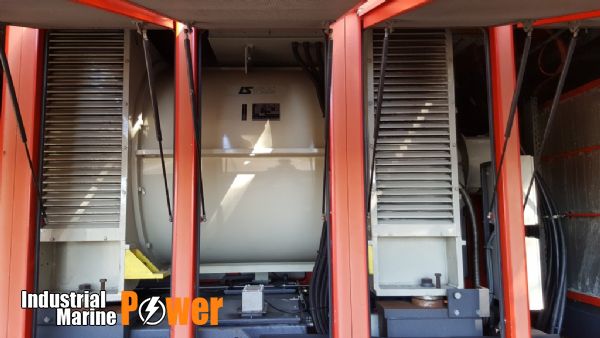

1.3 Generator

Manufacture : Leroy Somer
Type/Model : LSA 58 BMCL, 14-4P
Frequency : 50 Hz
Voltage : 5,25 kV
Power : 14.800 kVA, PF = o.8
Speed : 1500
Year mafactured : 2005

.Selling at USD$1.6million as is where is.

To see the contact details please Login or Register
Contact Name:oyelami opeyemi
Company Name:ZELAN INTERNATIONALLIMITED
Mobile Phone:2348109711539
Phone:
Fax:
Country:United States
E-Mail:zelaninternational@gmail.com
Web:www.zelaninternational.com
