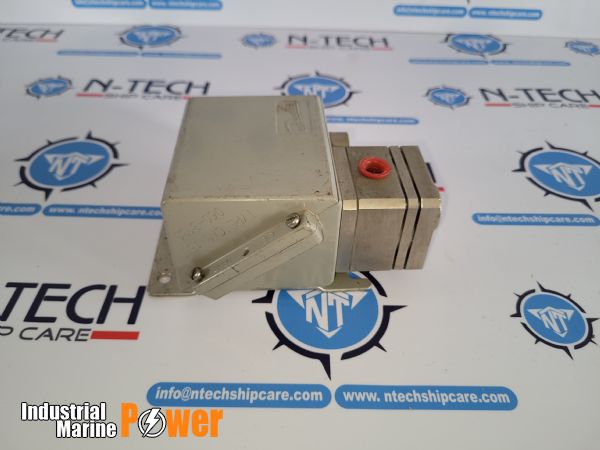

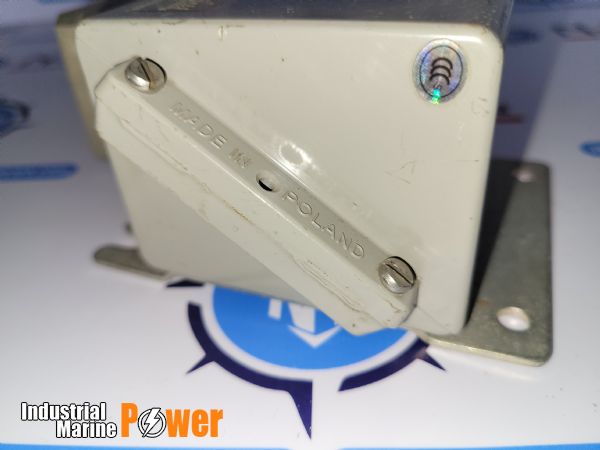

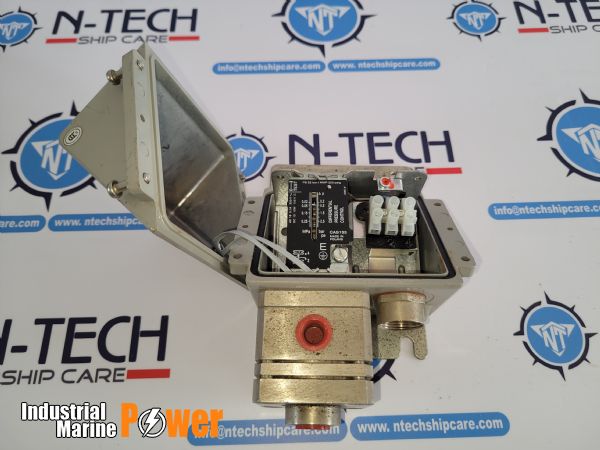

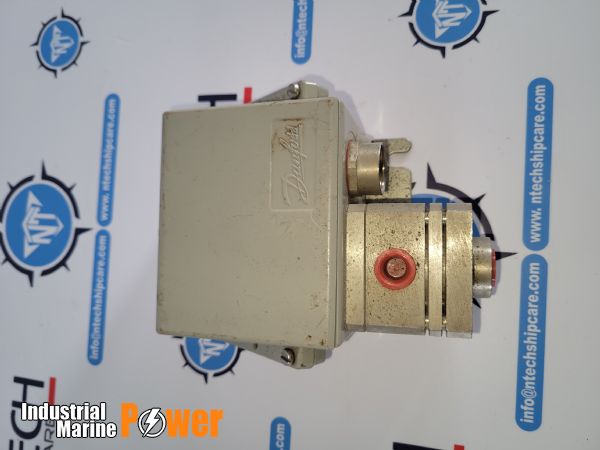

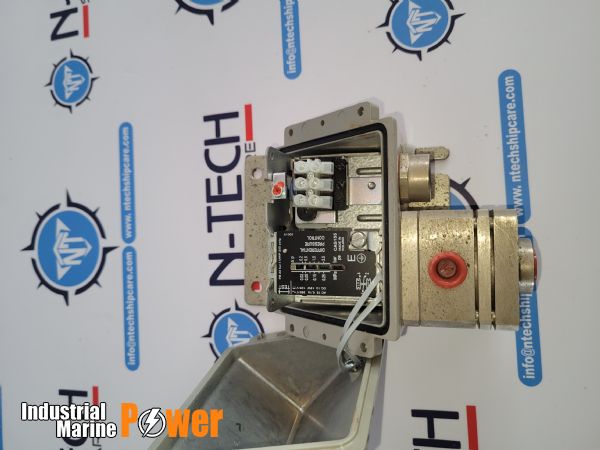

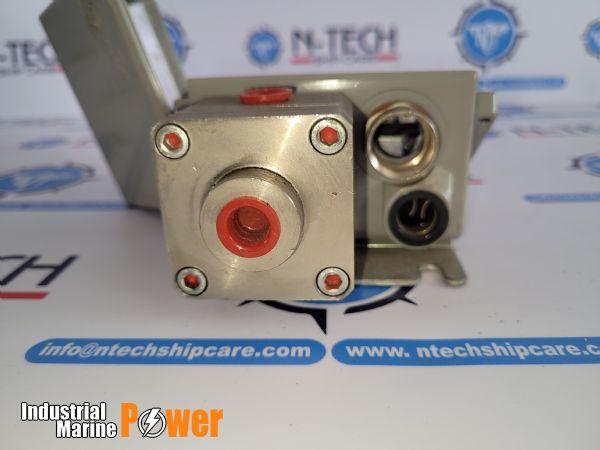

Danfoss Differential switch

Date: 8/17/2023 5:35:04 PM

Product details

Gross weight	1.622 Kg
Net weight	1.546 Kg

Volume	2.413 Liter
EAN	5702423151646

Ambient temperature range [°C] [max]	70 °C
Ambient temperature range [°C] [min]	-25 °C
Ambient temperature range [°F] [max]	158 °F
Ambient temperature range [°F] [min]	-13 °F
Approval	ABS BV CCC CE DNV EAC GL LLC CDC EURO-TYSK LR LVD NKK RINA RMRS RoHS RoHS China TYSK UKCA
Burst pressure [bar]	42 bar
Contact differential [bar]	0.1 bar
Contact function	SPDT
Contact rating	AC15=0.1 A, 220 V DC13=12 W, 125 V
Diff.press.setting range [bar] [max]	2.5 bar
Diff.press.setting range [bar] [min]	0.2 bar
Diff.press.setting range [MPa] [max]	0.25 MPa
Diff.press.setting range [MPa] [min]	0.02 MPa
Diff.press.setting range [psi] [max]	36.2 psi
Diff.press.setting range [psi] [min]	2.9 psi
Electrical conn. comments	Metal cable gland
Electrical conn. Male/Female	Female
Electrical connection	Screwed cable entry
Electrical connection size	Pg 13.5
Electrical connection standard	DIN 40430

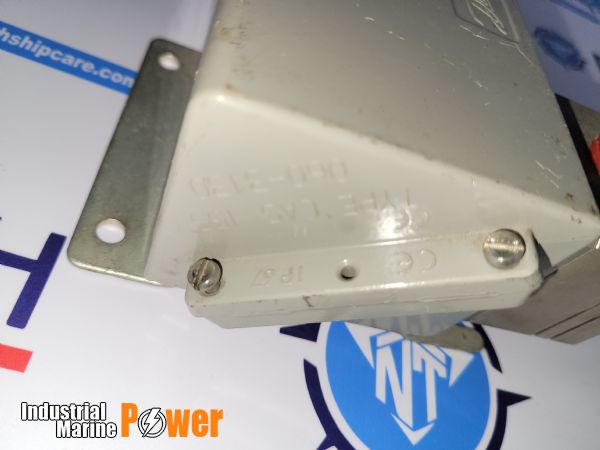

Enclosure rating IP	IP67
Max. test pressure [bar] Pe	22 bar
Max. test pressure [psig]	319 psig

Max. Working Pressure [bar]	22 bar
Max. Working Pressure [psig]	319 psig
Operat. range LP side [bar] Pe [max]	8 bar
Operat. range LP side [bar] Pe [min]	0 bar
Operat. range LP side [psig]Pe [max]	115 psig
Operat. range LP side [psig]Pe [min]	0 psig
Packing format	Multi pack

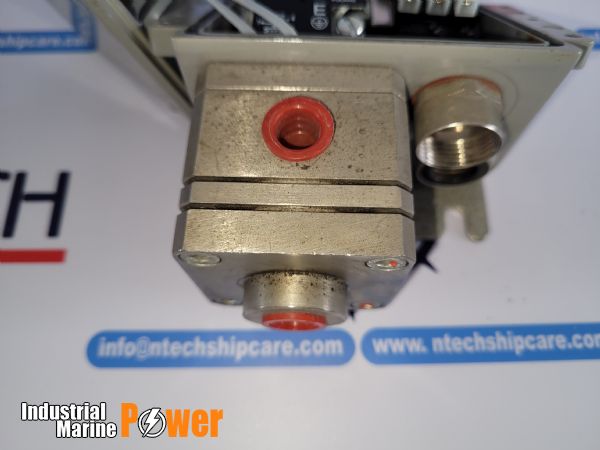

Pressure connection size	1/4
Pressure connection standard	ISO 228-1
Pressure connection type	G
Pressure Male/Female	Female
Product accessories	Generic accessories
Product description	Diff. Pressure Switch
Product group	Switches and thermostats
Product Name Description	Differential pressure switch
Quantity per packing format	8 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
Relay release time [s]	0 s
Reset function	Auto
SCIP dossier no.	84be8326-1b95-4f87-afb0-90ae08b65f06
Serviceable	No

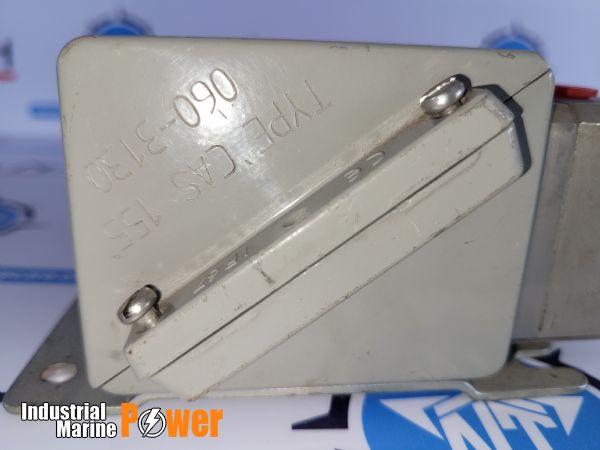

Type	CAS155
